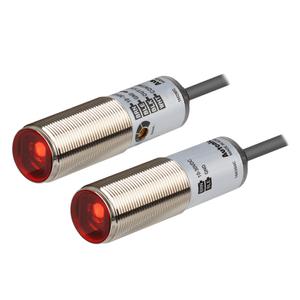

Autonics BRQM1M-DDTA-P Photoelectric Sensor
The Autonics BRQM1M-DDTA-P Photoelectric Sensor offers Diffuse reflective type sensing type, 1m, Red LED(660nm), PNP open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQM1M-DDTA-P |
Autonics BRQM1M-DDTA-P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 1m |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | PNP open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection type | Cable type(Γ4, 2m) |
| Material | γCase: brass, Ni-plateγLens, Lens cover: polymethyl methacrylate acrylic |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Weight | Approx. 150g(approx. 70g) |
The Autonics BRQM1M-DDTA-P Cylindrical Photoelectric Sensor operates on a diffuse reflective sensing type with a 1m detection range, making it suitable for opaque and translucent materials. Its cylindrical brass body with Ni-plating ensures strong durability in demanding industrial environments.
Equipped with a Red LED (660nm) light source and a rapid 1ms response time, this sensor delivers reliable object detection even in high-speed automation lines. Engineers can adjust sensitivity using the built-in dial, and select between Light ON/Dark ON modes through the control wire. It operates on 10β30VDC, consuming only 30mA, and outputs via a PNP open collector for easy integration with PLC systems.
Built to last, the BRQM1M-DDTA-P carries an IP67 protection rating, providing resistance against dust, water, and oil splashes. It withstands ambient lighting up to 11,000lx sunlight and 3,000lx incandescent, ensuring stable detection under varying light conditions. The 2m cable connection offers secure wiring, while wide operating ranges from β25Β°C to 60Β°C allow performance in harsh environments. Full technical details are available on Autonics Sensors & Controllers or in the Autonics Photoelectric Sensors catalog.
The Autonics BRQM1M-DDTA-P Cylindrical Photoelectric Sensor is widely used in conveyor inspections, packaging systems, and component orientation for assembly lines. Its long detection range and fast response make it ideal for electronics manufacturing, bottling plants, and food processing units. Maintenance engineers value its quick installation, low maintenance, and repeatable accuracy. For industries requiring dependable automation, the Autonics BRQM1M-DDTA-P is a proven choice.
