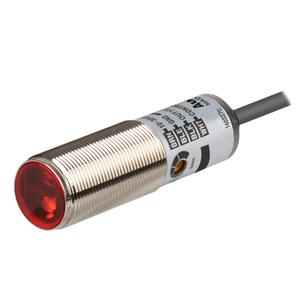

Autonics BRQM100-DDTA-C-P Photoelectric Sensor
The Autonics BRQM100-DDTA-C-P Photoelectric Sensor offers Diffuse reflective type sensing type, 100mm, Infrared LED(850nm), PNP open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BRQ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQM100-DDTA-C-P |
Autonics BRQM100-DDTA-C-P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | PNP open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection type | Connector type(M12) |
| Material | γCase: brass, Ni-plateγLens, Lens cover: polymethyl methacrylate acrylic |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Weight | Approx. 140g(approx. 30g) |
Talk to Our Engineer for Cylindrical Photoelectric Sensors BRQM100-DDTA-C-P with exclusive offers. Core System Specifications of BRQM100-DDTA-C-P are the sensor features a diffuse Diffuse reflective type with a reliable sensing distance of 100mm, ensuring precise object detection. Powered by an Infrared LED(850nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Max. 30mA. It includes an PNP open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), making it suitable for challenging conditions. The connection type features a robust Connector type(M12) for easy installation. Don't Miss Out on a Quote for your requirement of Cylindrical Photoelectric Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
