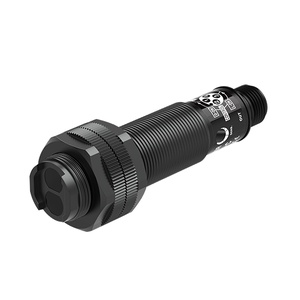

Autonics BRP200-DDTN-P Photoelectric Sensor
The Autonics BRP200-DDTN-P Photoelectric Sensor offers Narrow beam reflective type sensing, Infrared LED(850nm) light source, 12-24VDC power supply, PNP open collector output. Manufactured by Autonics under the Autonics Photoelectric Sensor category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRP200-DDTN-P |
Autonics BRP200-DDTN-P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Narrow beam reflective type |
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(Γ5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60β, storage: -25 to 75β |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case-Polyamide(black), Sensing part-Polycarbonate lens |
| Accessories | M18 fixing nut: 2, adjustment screwdriver |
| Weight | Approx. 140g(approx. 100g) |
Mail Us for your needs in Autonics Cylindrical Photoelectric Sensors BRP200-DDTN-P with budget-friendly prices. The Main Technical Parameters of BRP200-DDTN-P include Narrow beam reflective type at competitive prices. This sensor features a 200mm sensing distance, making it ideal for detecting Opaque, Translucent material with high precision. Equipped with an Infrared LED(850nm) light source, it ensures stable and reliable operation.
With a response time of Max. 1ms, it provides fast and accurate detection. It operates on a 12-24VDC power supply, ensuring efficiency in industrial applications. The current consumption is Max. 45mA, making it an energy-efficient choice.
The sensor includes a Sensitivity adjuster for easy customization and supports Light ON/Dark ON(set by control wire). It features an PNP open collector control output for seamless integration. Designed with an Cable type(Γ5, 2m), it ensures secure and flexible connectivity.
Customize Your Experience with a Quote for your requirement of Cylindrical Photoelectric Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
