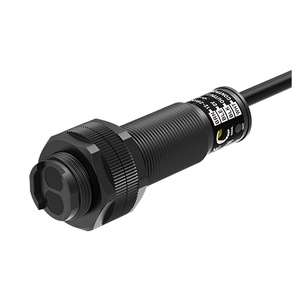

Autonics BRP200-DDTN Photoelectric Sensor
The Autonics BRP200-DDTN Photoelectric Sensor offers Narrow beam reflective type sensing, Infrared LED(850nm) light source, 12-24VDC power supply, NPN open collector output. Manufactured by Autonics under the Autonics Photoelectric Sensor category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRP200-DDTN |
Autonics BRP200-DDTN Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Narrow beam reflective type |
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 12-24VDC |
| Current consumption | Max. 45mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60β, storage: -25 to 75β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP66 |
| Connection type | Cable type(Γ5, 2m) |
| Material | Case-Polyamide(black), Sensing part-Polycarbonate lens |
| Accessories | M18 fixing nut: 2, adjustment screwdriver |
| Weight | Approx. 140g(approx. 100g) |
Get A Quote for Autonics Cylindrical Photoelectric Sensors BRP200-DDTN at the Best Price!
The BRP200-DDTN Cylindrical Photoelectric Sensor features a narrow beam reflective type for high-precision detection of opaque and translucent materials at a 200mm sensing distance. Equipped with an infrared LED (850nm) light source, it ensures stable and reliable operation in industrial environments.
With a maximum response time of 1ms, it provides fast and accurate detection. The sensor operates on a 12-24VDC @(=) Β±10% power supply (ripple P-P: max. 10%), ensuring energy efficiency, with a maximum current consumption of 45mA.
It includes a sensitivity adjuster for easy customization and supports Light ON/Dark ON operation (set by control wire). Featuring an NPN open collector control output, it allows seamless integration. The cable type (Γ5, 2m) ensures secure and flexible connectivity.
We serve industries across Maharashtra (Mumbai, Pune), Gujarat (Ahmedabad, Vadodara, Rajkot), Delhi NCR (Noida, Gurgaon, Faridabad), Tamil Nadu (Chennai, Coimbatore, Tirupur, Bangalore), Karnataka (Mysore), Telangana (Secunderabad, Hyderabad), Andhra Pradesh (Sri City, Visakhapatnam), West Bengal (Kolkata, Durgapur), Odisha (Bhubaneswar), Jharkhand (Jamshedpur), Madhya Pradesh (Indore), Rajasthan (Bhiwadi), and Punjab (Ludhiana).
Itβs Time to Get a Quote for Your Cylindrical Photoelectric Sensor Requirement! We guarantee unmatched pricing and superior support compared to other distributors.
