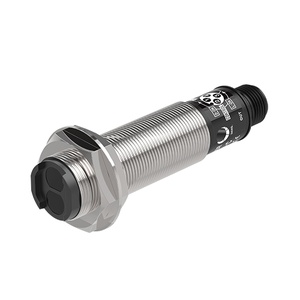

Autonics BR200-DDTN-C Photoelectric Sensor
The Autonics BR200-DDTN-C Photoelectric Sensor offers Narrow beam reflective type sensing, Infrared LED(850nm) light source, 12-24VDC power supply, NPN open collector output. Manufactured by Autonics under the Autonics Photoelectric Sensor category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BR200-DDTN-C |
Autonics BR200-DDTN-C Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Narrow beam reflective type |
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Connector type(M12) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60β, storage: -25 to 75β |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case - Brass, Ni-plateSensing part - Polycarbonate lens |
| Accessories | M18 fixing nut: 2, washer:1, adjustment screwdriver |
| Weight | Approx. 90g(approx. 50g) |
Call us for Autonics Cylindrical Photoelectric Sensors BR200-DDTN-C at the best rates. Technical Attributes of BR200-DDTN-C are Narrow beam reflective type at competitive prices. This sensor features a 200mm sensing distance, making it ideal for detecting Opaque, Translucent material with high precision. Equipped with an Infrared LED(850nm) light source, it ensures stable and reliable operation.
With a response time of Max. 1ms, it provides fast and accurate detection. It operates on a 12-24VDC power supply, ensuring efficiency in industrial applications. The current consumption is Max. 45mA, making it an energy-efficient choice.
The sensor includes a Sensitivity adjuster for easy customization and supports Light ON/Dark ON(set by control wire). It features an NPN open collector control output for seamless integration. Designed with an Connector type(M12), it ensures secure and flexible connectivity.
