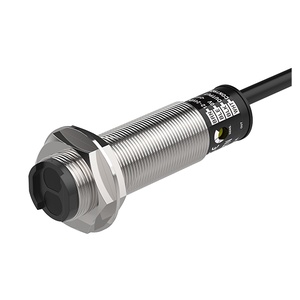

Autonics BR200-DDTN Photoelectric Sensor
The Autonics BR200-DDTN Photoelectric Sensor offers Narrow beam reflective type sensing, Infrared LED(850nm) light source, 12-24VDC power supply, NPN open collector output. Manufactured by Autonics under the Autonics Photoelectric Sensor category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BR200-DDTN |
Autonics BR200-DDTN Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Narrow beam reflective type |
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 12-24VDC |
| Current consumption | Max. 45mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60β, storage: -25 to 75β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP66 |
| Connection type | Cable type(Γ5, 2m) |
| Material | Case - Brass, Ni-plateSensing part - Polycarbonate lens |
| Accessories | M18 fixing nut: 2, washer:1, adjustment screwdriver |
| Weight | Approx. 160g(approx. 120g) |
The Autonics BR200-DDTN Photoelectric Sensor operates on a 12β24VDC supply with a maximum current consumption of 45mA, making it energy-efficient while delivering consistent results. It uses a narrow beam reflective sensing type with an infrared LED (850nm) light source, capable of detecting both opaque and translucent materials at a distance of 200mm. With a 1ms response time, this sensor is well-suited for fast-moving production lines that demand real-time accuracy.
Engineered with a robust brass case and polycarbonate lens, the BR200-DDTN is durable and long-lasting. Its IP66 protection rating provides resistance against dust, water, and harsh industrial conditions. It also features a sensitivity adjuster for fine-tuning detection, along with Light ON/Dark ON operation modes selectable by control wire. The NPN open collector output ensures easy integration with PLCs and industrial controllers, while the 2m cable connection provides flexibility during installation.
In practical use, the Autonics BR200-DDTN Cylindrical Photoelectric Sensor is trusted in applications such as object detection on conveyors, presence verification in packaging systems, and positioning tasks in automated machinery. Maintenance engineers rely on its reliability to minimize downtime, while students and junior engineers can study it as a key example of optical sensing in automation. Widely adopted across automotive, packaging, and material handling industries, the Autonics BR200-DDTN stands out as a proven solution for precision, efficiency, and durability. For full specifications and related models, visit the Autonics Photoelectric Sensors page or the Autonics Sensors & Controllers range.
