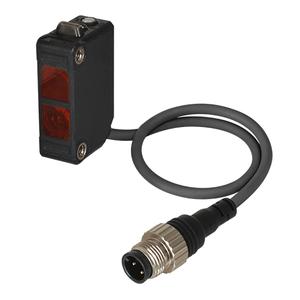

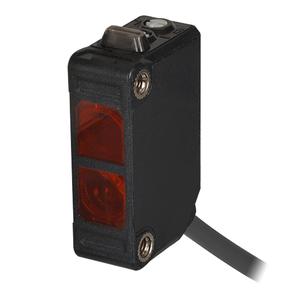

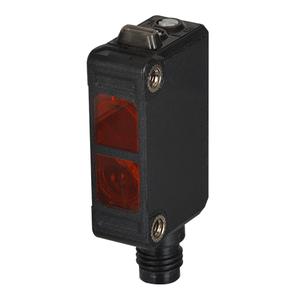

Autonics BJR3M-PDT Photoelectric Sensor
The Autonics BJR3M-PDT Photoelectric Sensor offers Retroreflective type(built-in polarizing filter) sensing type, 3m, Red LED(660nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BJR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BJR3M-PDT |
Autonics BJR3M-PDT Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Γ75mm |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -40 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67 (IEC standard), IP67G (JEM standard) |
| Connection type | Γ4mm, 3-wire, 2m (emitter of through-beam type: Γ4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Γ1mm) |
| Material | Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic |
| Accessories_Common | Mounting bracket, M3 bolt: 2, adjustment screwdriver |
| Accessories_Individual | Reflector(MS-2S) |
| Oil resistant/oil proof | Oil resistant type |
| Weight | Approx. 115g(approx. 50g) |
Get A Quote for Oil-Resistant Photoelectric Sensors BJR3M-PDT at the best price. Here are the brief Technical Specifications of BJR3M-PDT are the sensor features a diffuse Retroreflective type(built-in polarizing filter) with a reliable sensing distance of 3m, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by switch) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Max. 30mA. It includes an NPN open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67 (IEC standard), IP67G (JEM standard), making it suitable for challenging conditions. The connection type features a robust Γ4mm, 3-wire, 2m (emitter of through-beam type: Γ4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Γ1mm) for easy installation. It's Time to get a Quote for your requirement of Oil-Resistant Photoelectric Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
