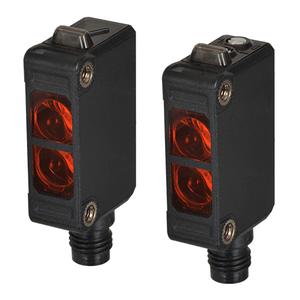

Autonics BJR15M-TDT-C-P-F Photoelectric Sensor
The Autonics BJR15M-TDT-C-P-F Photoelectric Sensor offers Through-beam type sensing type, 15m, Infrared LED(850nm), PNP open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BJR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BJR15M-TDT-C-P-F |
Autonics BJR15M-TDT-C-P-F Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 15m |
| Sensing target | Opaque material of min. Γ12mm |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 10-30VDC |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Control output | PNP open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -40 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard), IP67F(JEM standard) |
| Connection type | M8 connector |
| Material | Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic |
| Accessories_Common | Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver |
| Oil resistant/oil proof | Oil proof type |
| Weight | Approx. 65g(approx. 12g) |
Call us for Oil-Resistant Photoelectric Sensor BJR15M-TDT-C-P-F at the best rates. Technical Attributes of BJR15M-TDT-C-P-F are the sensor features a diffuse Through-beam type with a reliable sensing distance of 15m, ensuring precise object detection. Powered by an Infrared LED(850nm), it operates in Light ON/Dark ON(set by switch) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Emitter/Receiver: Max. 20mA. It includes an PNP open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), IP67F(JEM standard), making it suitable for challenging conditions. The connection type features a robust M8 connector for easy installation. Unlock Exclusive Pricing with a Quote for your requirement of Oil-Resistant Photoelectric Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
