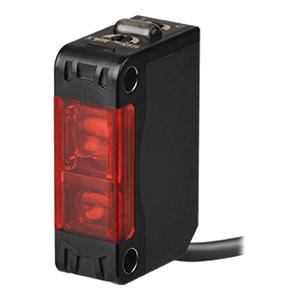

Autonics BJP100-BDT Photoelectric Sensor
The Autonics BJP100-BDT Photoelectric Sensor offers BGS reflective type sensing type, 10 to 100mm, Red LED(660nm), NPN open collector output, 12-24VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BJ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BJP100-BDT |
Autonics BJP100-BDT Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | BGS reflective type |
| Sensing distance | 10 to 100mm |
| Sensing target | Opaque |
| Response time | Max. 1.5ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 12-24VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55β, storage: -40 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(IEC standard) |
| Connection type | Cable type(Γ3.5, 2m) |
| Material | Case: polycarbonate+acrylonitrile butadiene styrene,LED indicator: polycarbonate, sensing part: polymethyl methacrylate |
| Accessories | Adjustment screwdriver, bracket A, M3 bolts: 2, M3 nuts: 2 |
| Hysteresis(distance) | Max. 10% of setting distance |
| Available setting distance | 20 to 100mm |
| Weight | Approx. 105g(approx. 50g) |
The Autonics BJP100-BDT Photoelectric Sensor provides short-range object detection with a 10 to 100mm sensing distance, BGS reflective type, NPN output, and 1.5ms response time. As part of the Autonics BJ Series, it supports the detection needs of industrial automation setups across various sectors in India.
This sensor fits conveyors, packaging lines, assembly processes, and compact automation equipment needing precise detection within limited ranges. Its BGS design helps maintain stable sensing performance even with variations in object color or background, while Light ON/Dark ON switching enhances integration flexibility. The cable-type configuration ensures consistent operation in repetitive environments.
The Autonics BJP100-BDT Photoelectric Sensor delivers dependable sensing performance backed by trusted Autonics engineering. With its 10β100mm range, BGS reflective setup, red LED source, and NPN open collector output, it is suitable for demanding automation tasks requiring stable and repeatable detection. As a BJ Series model, it supports reliable operation within diverse industrial applications.
