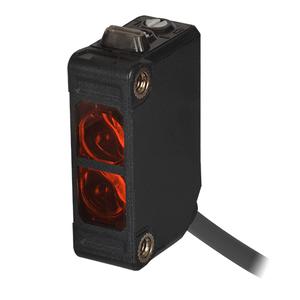

Autonics BJG30-DDT Photoelectric Sensor
The Autonics BJG30-DDT Photoelectric Sensor offers Diffuse reflective type sensing type, 30mm(Non-glossy white paper 100Γ100mm), 15mm(Transparent glass 50Γ50mm, t=3.0mm), Infrared LED(850nm), NPN open collector output, 12-24VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BJ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BJG30-DDT |
Autonics BJG30-DDT Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 30mm(Non-glossy white paper 100Γ100mm), 15mm(Transparent glass 50Γ50mm, t=3.0mm) |
| Sensing target | Opaque, Translucent material(30mm), Transparent glass(15mm) |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Operation mode | Light ON |
| Power supply | 12-24VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55β, storage: -40 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65 |
| Connection type | Cable type(Γ3.5, 2m) |
| Material | Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate |
| Accessories | Fixing bracket, M3 bolt: 2, M3 nut: 2 |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Weight | Approx. 45g |
The Autonics BJG30-DDT Compact High Performance Photo Sensor is designed for precision at short distances, offering a 30mm diffuse reflective range for opaque materials and 15mm range for transparent glass. Powered by a 12β24V DC supply with a maximum current consumption of 30mA, it ensures energy efficiency and smooth integration with PLCs and automation controllers. The infrared LED (850nm) light source and 1ms response time deliver fast and stable sensing in packaging lines and labeling systems. Built with durable polycarbonate, ABS, stainless steel, and nickel-plated brass components, the BJG30-DDT achieves IP65 protection, resisting dust and water spray in demanding factory environments. Its 2-meter cable and included mounting accessories simplify installation and maintenance for engineers.
Trusted for versatility, the BJG30-DDT Photoelectric Sensor is commonly applied in packaging, labeling, and pharmaceutical conveyors where accurate detection of transparent films, PET bottles, blister packs, and glass containers is required. Its compact design makes it suitable for tight spaces without sacrificing accuracy. Maintenance teams appreciate its plug-and-play wiring and reliability, while automation students and engineers value its ability to handle complex object surfaces with precision. The sensorβs fast response and low hysteresis ensure consistent detection, reducing errors and downtime in production.
With robust engineering and proven performance, the Autonics BJG30-DDT provides dependable short-range sensing for industries seeking efficiency and accuracy. Whether used for retrofits or new installations, it delivers long service life, ease of use, and confidence in critical automation tasks. For more solutions, the complete Autonics Sensors & Controllers portfolio or visit our Autonics Photoelectric Sensors section.
