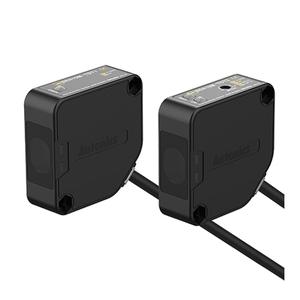

Autonics BEN10M-TDT 10 m Photoelectric Sensor
BEN10M-TDT is an Autonics 10 m photoelectric sensor with 10 m through-beam sensing distance and infrared LED operation mode. Manufactured by Autonics, this sensor is part of Autonics Photoelectric Sensors within the BEN Series, featuring through-beam sensing type, 10 m sensing distance, max. 1 ms response time, infrared LED (850 nm), Light ON and Dark ON selection, 12β24 VDC power supply, simultaneous NPN and PNP open collector outputs, and cable connection type.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BEN10M-TDT |
Autonics BEN10M-TDT 10 m Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 10m |
| Sensing target | Opaque material of min. Γ16mm |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 12-24VDC |
| Current consumption | Emitter/Receiver: Max. 50mA |
| Control output | NPN, PNP open collector simultaneous output |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65β, storage: -25 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 |
| Connection type | Cable type(Γ5, 2m) |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 342g |
BEN10M-TDT Autonics 10 m Photoelectric Sensor is used for long-distance object detection in industrial automation systems. This Autonics 10 m photoelectric sensor operates using through-beam sensing with a 10 m sensing distance and an infrared LED (850 nm) light source. It supports Light ON and Dark ON operation and delivers a maximum response time of 1 ms. BEN10M-TDT belongs to the Autonics BEN Series applied in industrial automation environments.
The BEN10M-TDT Autonics 10 m Photoelectric Sensor is commonly installed in conveyors, packaging lines, automated assembly stations, and material handling systems. Its through-beam configuration enables reliable detection across wider machine gaps, while the simultaneous NPN and PNP open collector outputs support flexible integration with PLC inputs. Fast response time helps maintain accurate detection in continuous automation processes.
BEN10M-TDT Autonics 10 m Photoelectric Sensor combines defined sensing distance, controlled response time, and stable output configuration for industrial automation use. As part of the Autonics BEN Series, it reflects established brand reliability in photoelectric sensing applications. With its infrared light source, selectable operation modes, and DC power compatibility, BEN10M-TDT remains suitable for long-term operation in Indian industrial environments.
