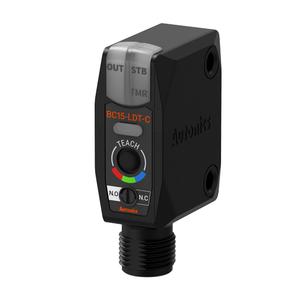

Autonics BC15-LDT-C-P Photoelectric Sensor
The Autonics BC15-LDT-C-P Photoelectric Sensor offers Convergent reflective type sensing type, 15mm, Full Color LED(red, green,blue), PNP open collector output, 12-24VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BC Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BC15-LDT-C-P |
Autonics BC15-LDT-C-P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Convergent reflective type |
| Sensing distance | 15mm |
| Sensing target | Color(opaque,translucent Material) |
| Response time | 500γ² |
| Light source | Full Color LED(red, green,blue) |
| Sensitivity adjustment | 3-level |
| Operation mode | color only,color + intensity |
| Power supply | 12-24VDC |
| Current consumption | Max. 30mA |
| Control output | PNP open collector |
| Environment_Ambient illumination | Incandescent lamp: Max. 3,000lx |
| Environment_Ambient temperature | -10 to 55β, storage: -25 to 75β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67 |
| Connection type | Connector type(M12) |
| Material | Case: polycarbonate, Sensing part: acrylic, Bracket: stainless steel 304 , Bolt: carbon steel |
| Spot size | 1.24Γ6.7mm(rectangular) |
| Sensing mode | C(color only) mode, C+I(color + intensity) mode |
| Output mode | Color match output, color mismatch output |
| External input | External SET cable input |
| Timer function | Timer Function |
| Accessories | Bracket, Fixing bolts: 2 , Adjustment screwdriver: 1 |
| Hysteresis(distance) | Max. 20% of sensing distance(may vary by sensing mode or sensitivity) |
| Weight | Approx. 80g(approx. 14g) |
Mail Us for your needs in Color Mark Sensors BC15-LDT-C-P with budget-friendly prices. The Main Technical Parameters of BC15-LDT-C-P include the sensor features a diffuse Convergent reflective type with a reliable sensing distance of 15mm, ensuring precise object detection. Powered by an Full Color LED(red, green,blue), it operates in color only,color + intensity mode, providing optimal efficiency in diverse environments. The response time is an impressive 500γ², enabling quick and accurate detection. This sensor operates on a 12-24VDC power supply and consumes a maximum current of Max. 30mA. It includes an PNP open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67, making it suitable for challenging conditions. The connection type features a robust Connector type(M12) for easy installation. Customize Your Experience with a Quote for your requirement of Color Mark Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
