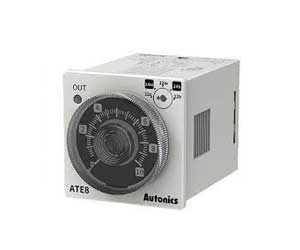

Autonics ATS8-41 0.1–10 s Timer
ATS8-41 is an Autonics 0.1–10 s Timer operating on 100–240VAC and 24–240VDC power supply with multiple timing ranges for industrial automation. Manufactured by Autonics, this timer is listed under the Autonics Timer range and belongs to the AT8N Series, supporting power on delay, flicker, and interval output operations, 0.1 seconds to 10 hours setting ranges, 8-pin plug terminal, and DPDT or SPDT control output configurations.
| Brand | Autonics |
| Product Type | Timer |
| Model Number | ATS8-41 |
Autonics ATS8-41 0.1–10 s Timer – Technical Specifications
| Specification | Value |
|---|---|
| Operation method | Time setting |
| Output Operation | POWER ON DELAY, FLICKER, INTERVAL |
| Time operation | POWER ON START |
| Terminal | 8-pin plug |
| Power supply | 100-240VAC~50/60Hz, 24-240VDC |
| Setting range | 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour |
| Control output | Time-limit DPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 95g (approx. 70g) |
The Autonics ATS8-41 0.1–10 s Timer is a timing control unit designed for controlled delay and interval functions in industrial automation systems. This ATS8-41 Autonics 0.1–10 s Timer operates using 100–240VAC and 24–240VDC power input and follows power on start timing logic. It provides multiple selectable timing ranges from 0.1 seconds to 10 hours and supports DPDT or SPDT output modes. The device is part of the AT8N Series and is used for time-based control tasks.
In industrial automation applications, the ATS8-41 Autonics 0.1–10 s Timer is used in conveyors, packaging machinery, assembly stations, and automated control panels. It helps manage startup delays, timed switching, and coordinated process sequences. The selectable time ranges allow accurate adjustment to different machine cycles, while the defined output configurations ensure predictable signal behavior during continuous operation.
The ATS8-41 Autonics 0.1–10 s Timer provides consistent timing performance based on clearly defined electrical specifications. With wide power compatibility, standardized plug-in terminals, and stable output control, it supports long-term use in industrial environments. As part of the AT8N Series, this timer is suitable for applications requiring reliable time delay control and repeatable automation processes.
