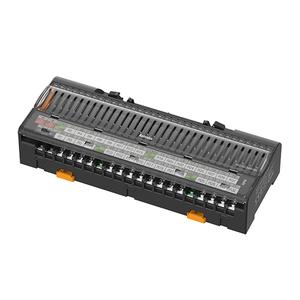

Autonics ASS-HC32MP0-NN I/O Terminal Block
The Autonics ASS-HC32MP0-NN I/O Terminal Blocks offers ≤ 24 VDC voltage, Screw terminal type, 7.62 mm Terminal pitch, 40 connector pins. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ASS-HC32MP0-NN |
Autonics ASS-HC32MP0-NN I/O Terminal Block – Technical Specifications
| Specification | Value |
|---|---|
| Applied SSR | AQZ202D(Panasonic) |
| Rated voltage | ≤ 24 VDC |
| Current consumption | ≤ 11.5 mA or ≤ 15.3 mA |
| Number of connector pins | 40 |
| Number of SSR | 32 |
| Terminal type | Screw |
| Terminal pitch | 7.62 mm |
| Indicator | Power indicator: red, operating indicator: blue |
| Applicable cable_Solid wire | Ø 0.3 to Ø 1.2 mm |
| Applicable cable_Stranded wire | AWG 22-16 (0.30 to 1.25 mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 2,500VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE: MPPO, BASE: PA66 (G25 %), COVER: PC, terminal pin: brass, Ni-plating |
| Weight | ≈ 370 g (≈ 463 g) |
IndMALL Automation Dealing offers Autonics Solid State Relay Terminal Blocks ASS-HC32MP0-NN at unbeatable prices. The Main Technical Parameters of ASS-HC32MP0-NN are ≤ 24 VDC rated voltage, ensuring stable and efficient operation. The current consumption is ≤ 11.5 mA or ≤ 15.3 mA, optimizing energy efficiency. It features a Screw type terminal with an 7.62 mm terminal pitch, providing secure and reliable connections.
With ≥1,000MΩ (at 500VDC megger) insulation resistance and dielectric strength of 2,500VAC 50/60Hz for 1 minute between coil-contacts and 1,000VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55℃, storage: -25 to 65℃ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with CASE: MPPO, BASE: PA66 (G25 %), COVER: PC, terminal pin: brass, Ni-plating brass terminal pins, it is designed for longevity. With an approximate weight of ≈ 370 g (≈ 463 g), it offers a robust yet lightweight design. Take the First Step with a Quote for your requirement of Solid State Relay Terminal Blocks. Choose us for unparalleled pricing and support over other Dealers & Distributors.
