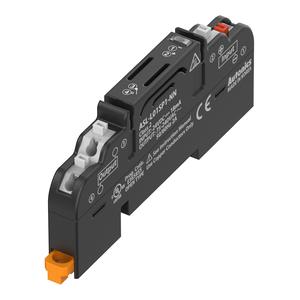

Autonics ASL-L01ST0-NN I/O Terminal Block
The Autonics ASL-L01ST0-NN I/O Terminal Blocks offers 24VDC ±10% voltage, Screwless terminal type, 9.0mm(arranging over 2 units) Terminal pitch, Operation indicator: Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ASL-L01ST0-NN |
Autonics ASL-L01ST0-NN I/O Terminal Block – Technical Specifications
| Specification | Value |
|---|---|
| Applied SSR | SN-24A01C[Fujitsu] |
| Rated voltage | 24VDC ±10% |
| Current consumption | ≤10mA |
| Terminal type | Screwless |
| Terminal pitch | 9.0mm(arranging over 2 units) |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mm²)(60℃ only) |
| Rated load voltage & current | 24-240VAC~ 50/60Hz 1A |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 2,500VAC~ 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC~ 50/60Hz for 1 minute |
| Accessories | Jumper bar: 1 |
| Protection structure | IP20(IEC standard) |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide |
| Weight | Approx. 136g(approx. 21g) |
Call us for Autonics Solid State Relay Terminal Blocks ASL-L01ST0-NN at the best rates. Technical Attributes of ASL-L01ST0-NN are 24VDC ±10% rated voltage, ensuring stable and efficient operation. The current consumption is ≤10mA, optimizing energy efficiency. It features a Screwless type terminal with an 9.0mm(arranging over 2 units) terminal pitch, providing secure and reliable connections.
With ≥1,000MΩ (at 500VDC megger) insulation resistance and dielectric strength of 2,500VAC~ 50/60Hz for 1 minute between coil-contacts and 1,000VAC~ 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55℃, storage: -25 to 65℃ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 136g(approx. 21g), it offers a robust yet lightweight design. Unlock Exclusive Pricing with a Quote for your requirement of Solid State Relay Terminal Blocks. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
