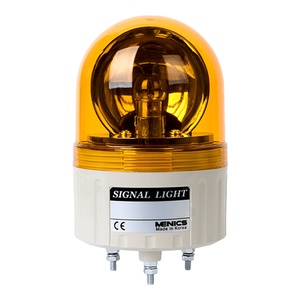

Autonics ASG-02-Y Signal Light
The Autonics ASG-02-Y Signal Light offers Rotating(Smooth Lens)function, power supply, Yellow lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Signal Lights category, this model belongs to the Autonics MS Series.
| Brand | Autonics |
| Product Type | Signal Lights |
| Product | ASG-02-Y |
Autonics ASG-02-Y Signal Light โ Technical Specifications
| Specification | Value |
|---|---|
| Function | Rotating(Smooth Lens) |
| Current consumption | 0.33A |
| Lens color | Yellow |
| Dimension | D86mm |
| Power supply(Bulb type) | 24VAC/DC |
| Rotating rate | 130ยฑ10rpm |
| Bulb specification | 24V 8W |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Storage ambient temperature | -20~70โ |
| Ambient temperature | -15~40โ |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100Mโฆ or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP42 |
Obtain a Quote for Autonics D86mm Bulb Revolving Warning Signal Light ASG-02-Y at economical prices. Specifications Overview for ASG-02-Y reveals Rotating(Smooth Lens), ensuring high visibility and loud alerts. It operates on a Lead wire connection Connection type with a current consumption of 0.33A, making it energy efficient. The lens color is Yellow, with a dimension of D86mm, providing a compact and durable design. The rotating rate is 130ยฑ10rpm, ensuring clear signaling. The bulb specification is 24V 8W, offering long-lasting performance. It includes an UL1007/22AWG cable specification for secure connections.
Built for industrial environments, it has a storage temperature range of -20~70โ, an operating temperature of -15~40โ, and a humidity tolerance of 45 to 85%RH. It provides insulation resistance 100Mโฆ or more (500VDC megger basis) and withstands 0.75mm at 10~55Hz vibration. With an IP42 protection structure, ensures durability. Take the First Step with a Quote for your requirement of D86mm Bulb Revolving Warning Signal Light. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
