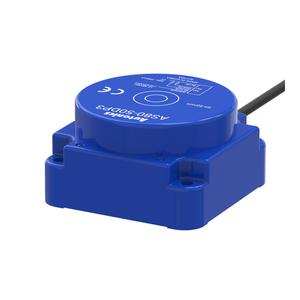

Autonics AS80-50DP3 Proximity Sensor
The Autonics AS80-50DP3 Proximity Sensor provides PNP Normally Open + Normally Closed output and a 50mm sensing distance for reliable metal object detection in automation applications. Manufactured by Autonics, this Autonics Proximity Sensor is part of the Autonics AS Series, operating on a DC 4-wire type (12β48VDC) design. It supports a 150Γ150Γ1mm iron target, offers max. 15% hysteresis, upper sensing type, 80mm frame size, and IP67 protection structure with a 30Hz response frequency for stable, long-lasting performance.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | AS80-50DP3 |
Autonics AS80-50DP3 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Brand | Autonics |
| Sensing distance | 50mm |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Standard sensing target | 150Γ150Γ1mm(iron) |
| Current specification | Current consumption: Max. 20mA |
| Control output | PNP Normally Open+Normally Closed |
| Wire type and power | DC 4-wire type12-48VDC @(=) |
| Sensing side size | Frame size 80mm |
| Sensing type | Upper sensing type |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Response frequency | 30Hz |
| Weight | Approx. 470g |
The Autonics AS80-50DP3 Proximity Sensor is a robust inductive type sensor in the AS Series known for dependable performance in detecting metallic objects. It features a 50mm sensing range, PNP NO+NC control output, and operates within a 12β48VDC range. Built with IP67-rated protection, it withstands dust, oil, and moisture exposure common in production environments. Developed by Autonics Corporation, this proximity sensor is optimized for reliable automation tasks requiring non-contact detection and repeatable accuracy.
In industrial automation systems, the Autonics AS80-50DP3 Proximity Sensor is widely used in material handling lines, robotic work cells, and packaging equipment. Its extended 50mm range is ideal for sensing larger metallic parts such as machine frames, jigs, or steel fixtures. The upper sensing type configuration simplifies vertical mounting, making it suitable for conveyor platforms and safety control panels. Across sectors like automotive assembly, textile machinery, and automation OEM panels, it provides accurate and fast detection for positioning, presence, and end-stop feedback.
Backed by Autonics Corporation, a globally trusted manufacturer of automation sensors and controllers, the AS80-50DP3 meets stringent ISO-certified quality standards. Engineers and OEMs across India rely on Autonics for dependable performance, easy wiring, and long operational life. Its solid-state design minimizes wear, ensuring consistent performance even under continuous duty cycles. The brandβs reputation in the industrial automation field ensures reliable post-sales support and spare availability, enhancing long-term user confidence.
For applications requiring an NPN output configuration, the AS80-50DN3 offers identical performance with NPN NO+NC output. Both models share the same rugged 80mm frame design and IP67 protection, allowing engineers to select output logic based on system wiring preference. You can view or order the AS80-50DP3 online for precise and reliable metal detection in automation projects.
The Autonics AS80-50DP3 Proximity Sensor combines accuracy, strong environmental resistance, and stable operation to meet industrial sensing demands. Its wide voltage range, PNP NO+NC dual output, and durable IP67 housing make it a trusted choice for machine builders and system integrators. Supported by Autonicsβ global expertise and service network, the AS80-50DP3 continues to set a dependable standard in proximity sensing across Indiaβs industrial automation landscape.
