Many procurement teams check ACR-40L against Autonics Proximity Sensor, Autonics Digital Counter and Autonics Abs S04Pa Cn before signing purchase orders, verifying quality, compliance, and after-sales support availability.

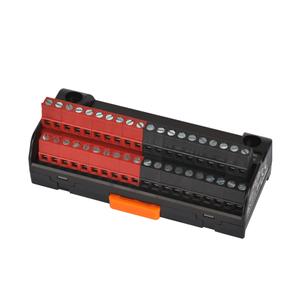

Autonics ACR-40L I/O Terminal Block
The Autonics ACR-40L I/O Terminal Blocks offers β€250VDC, 250VAC~, 50/60Hz voltage, 40 EA number of terminals, Max. 10A current, 5.0mm terminal pitch. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ACR-40L |
Autonics ACR-40L I/O Terminal Block β Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | β€250VDC, 250VAC~, 50/60Hz |
| Terminal type | Rising Clamp |
| Terminal pitch | 5.0mm |
| Applicable cable_Solid wire | Γ0.6 to Γ1.25mm(60β only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mmΒ²)(60β only) |
| Number of terminal | 40 EA |
| Rated current | Max. 10A |
| Dielectric strength | 3,000VAC~ 50/60Hz for 1 minute (between open terminals) |
| Common type | Left +COM, Right -COM |
| Stripped wire length | 8 to 10mm |
| Insulation resistance | β₯1,000Mβ¦ (at 500VDC megger) |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE, BASE: PC |
| Weight | Approx. 172g(approx. 105g) |
Talk to Our Engineer for Autonics Rising Clamp Common Terminal Block ACR-40L with exclusive offers. Core System Specifications of ACR-40L are β€250VDC, 250VAC~, 50/60Hz rated voltage, ensuring stable and efficient operation. The current consumption is , optimizing energy efficiency. It features a Rising Clamp type terminal with an 5.0mm terminal pitch, providing secure and reliable connections.
With β₯1,000Mβ¦ (at 500VDC megger) insulation resistance and dielectric strength of between coil-contacts and between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55β, storage: -25 to 65β and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with CASE, BASE: PC brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 172g(approx. 105g), it offers a robust yet lightweight design. Don't Miss Out on a Quote for your requirement of Rising Clamp Common Terminal Block. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
