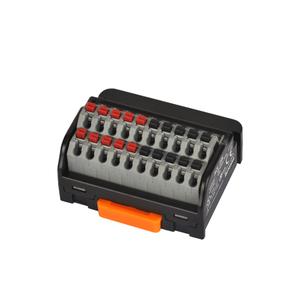

Autonics ACL-20L I/O Terminal Block
The Autonics ACL-20L I/O Terminal Blocks offers ≤250VDC, 250VAC~, 50/60Hz voltage, 20 EA number of terminals, Max. 10A current, 5.0mm terminal pitch. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ACL-20L |
Autonics ACL-20L I/O Terminal Block – Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | ≤250VDC, 250VAC~, 50/60Hz |
| Terminal type | Screwless |
| Terminal pitch | 5.0mm |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mm²)(60℃ only) |
| Number of terminal | 20 EA |
| Rated current | Max. 10A |
| Dielectric strength | 3,000VAC~ 50/60Hz for 1 minute (between open terminals) |
| Common type | Left +COM, Right -COM |
| Stripped wire length | 8 to 10mm |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE, BASE: PC |
| Weight | Approx. 71g(approx. 42g) |
Get A Quote for Autonics Screwless Common Terminal Block ACL-20L at unbeatable prices. Detailed Specifications of ACL-20L feature ≤250VDC, 250VAC~, 50/60Hz rated voltage, ensuring stable and efficient operation. The Rated current is Max. 10A, optimizing energy efficiency. It features a number of connector pins with an 5.0mm terminal pitch, providing secure and reliable connections.
With ≥1,000MΩ (at 500VDC megger) Number of terminalh of 20 EA between Dielectric strength and 3,000VAC~ 50/60Hz for 1 minute (between open terminals), this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55℃, storage: -25 to 65℃ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with CASE, BASE: PC brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 71g(approx. 42g), it offers a robust yet lightweight design. Match Your Needs with a Quote for your requirement of Screwless Common Terminal Block. Our pricing and support are unrivaled, especially when compared to other Distributors.
