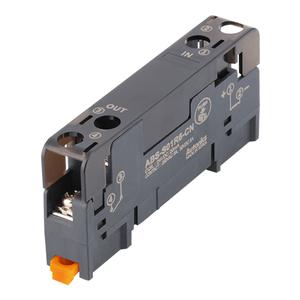

Autonics ABS-S01R6-CN I/O Terminal Block
The Autonics ABS-S01R6-CN I/O Terminal Blocks offers 24VDC ±10% voltage, 250VAC~ 5A, 30VDC 5A load voltage & current, 1-point relay points, Operation indicator: Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ABS-S01R6-CN |
Autonics ABS-S01R6-CN I/O Terminal Block – Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | 24VDC ±10% |
| Current consumption | ≤20mA |
| Indicator | Operation indicator: Blue LED |
| Rated load voltage & current | 250VAC~ 5A, 30VDC 5A |
| Applied relay | G6B-1174P-FD-US[OMRON] |
| Number of relay points | 1-point |
| Applicable cable | AWG19－14(0.65 to 2.0mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE & BASE: PA6, TERMINAL PIN: Brass |
| Weight | Approx. 416g(approx. 30g) |
Mail Us for Autonics Relay Terminal Blocks ABS-S01R6-CN at unbeatable prices. Detailed Specifications of ABS-S01R6-CN feature 24VDC ±10% rated voltage, ensuring stable and efficient operation. The current consumption is ≤20mA, optimizing energy efficiency. It features a 250VAC~ 5A, 30VDC 5A Rated load voltage & current with an 1-point Number of relay points, providing secure and reliable connections.
With ≥1,000MΩ (at 500VDC megger) insulation resistance and dielectric strength of 3,000VAC 50/60Hz for 1 minute between coil-contacts and 1,000VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55℃, storage: -25 to 65℃ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with CASE & BASE: PA6, TERMINAL PIN: Brass brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 416g(approx. 30g), it offers a robust yet lightweight design. Elevate Your Project with a Quote for your requirement of Relay Terminal Blocks. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
