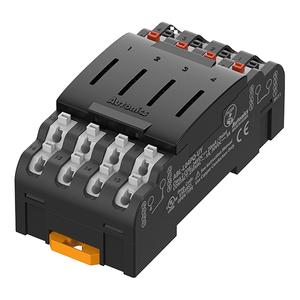

Autonics ABL-L04PQ-UN I/O Terminal Block
The Autonics ABL-L04PQ-UN I/O Terminal Blocks offers 24VDC Β±10% voltage, Screwless terminal type, 10.2mm Terminal pitch, Operation indicator: Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ABL-L04PQ-UN |
Autonics ABL-L04PQ-UN I/O Terminal Block β Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | 24VDC Β±10% |
| Current consumption | β€20mA |
| Terminal type | Screwless |
| Terminal pitch | 10.2mm |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | Γ0.6 to Γ1.25mm(60β only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mmΒ²)(60β only) |
| Rated load voltage & current | 250VAC~ 50/60Hz 5A, 30VDC 5A |
| Applied relay | PQ1a-24V [MATSUSHITA(Panasonic)] |
| Number of relay points | 4-point |
| Insulation resistance | β₯1,000Mβ¦ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 4,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Accessories | Jumper bar: 1 |
| Protection structure | IP20(IEC standard) |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: polyamide 66, conducting plate: brass, case&base: modified polyphenylene oxide |
| Weight | Approx. 148g(approx. 92g) |
Mail Us for your needs in Autonics Relay Terminal Blocks Screwless Type ABL-L04PQ-UN with budget-friendly prices. The Main Technical Parameters of ABL-L04PQ-UN include 24VDC Β±10% rated voltage, ensuring stable and efficient operation. The current consumption is β€20mA, optimizing energy efficiency. It features a Screwless type terminal with an 10.2mm terminal pitch, providing secure and reliable connections.
With β₯1,000Mβ¦ (at 500VDC megger) insulation resistance and dielectric strength of 4,000VAC 50/60Hz for 1 minute between coil-contacts and 1,000VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55β, storage: -25 to 65β and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with Terminal block: polyamide 66, conducting plate: brass, case&base: modified polyphenylene oxide brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 148g(approx. 92g), it offers a robust yet lightweight design. Customize Your Experience with a Quote for your requirement of Relay Terminal Blocks Screwless Type. Experience the difference with our competitive pricing and superior support over other Suppliers.
