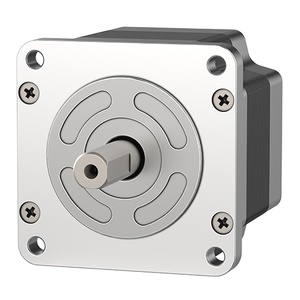

Home Autonics 5-Phase Stepper Motor Driver 5-Phase Series A63K-G5913 Autonics A63K-G5913 5-Phase Stepper Motor Driver The Autonics A63K-G5913 5-Phase Stepper Motor Driver offers 128mm motor length, Single shaft type, Pentagon wire connection, 2.8A/Phase current. Manufactured by Autonics under the 5-Phase Stepper Motor Driver category, this model belongs to the Autonics AK Series.
Brand Autonics Product Type 5-Phase Stepper Motor Driver Model Number A63K-G5913
Autonics A63K-G5913 5-Phase Stepper Motor Driver β Technical Specifications Specification Value Motor length 128mm Shaft type Single shaft Wire connection Pentagon Rated current 2.8A/Phase Basic Step Angle [FULL/HALF] 0.72ΒΊ/0.36ΒΊ Max. holding torque 63kgf.cm Rotor Moment Of Inertia 4000gΒ·cmΒ² Winding Resistance 0.86Ξ© Protection structure IP30 ElectroMagnetic brake_Rated excitation voltage 24VDC @(=)Β±10%(no-polarity) ElectroMagnetic brake_Rated excitation current 0.62A ElectroMagnetic brake_Static friction torque 40kgf.cm ElectroMagnetic brake_Rotation part inertia moment 153Γ10@(^-7)kgf.cmΒ² ElectroMagnetic brake_B type brake Power on: brake is released, power off: brake is operating ElectroMagnetic brake_Operating time Max. 60ms ElectroMagnetic brake_Releasing time Max. 15ms Weight Approx. 4.25kg(approx. 3.8kg)
