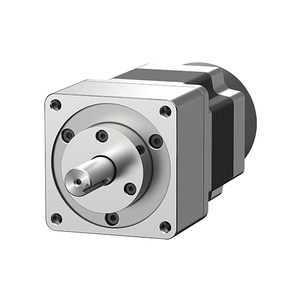

Home Autonics 5-Phase Stepper Motor Driver 5-Phase Series A50K-M566-GB10 Autonics A50K-M566-GB10 5-Phase Stepper Motor Driver The Autonics A50K-M566-GB10 5-Phase Stepper Motor Driver offers 121mm motor length, Single shaft type, Pentagon wire connection, 1.4A/Phase current. Manufactured by Autonics under the 5-Phase Stepper Motor Driver category, this model belongs to the Autonics AK Series.
Brand Autonics Product Type 5-Phase Stepper Motor Driver Model Number A50K-M566-GB10
Autonics A50K-M566-GB10 5-Phase Stepper Motor Driver – Technical Specifications Specification Value Motor length 121mm Shaft type Single shaft Wire connection Pentagon Rated current 1.4A/Phase Basic Step Angle [FULL/HALF] 0.072º/0.036º Rotor Moment Of Inertia 280g·cm² Winding Resistance 1.1Ω Protection structure IP30 ElectroMagnetic brake_Rated excitation voltage 24VDC @(=)±10%(no-polarity) ElectroMagnetic brake_Rated excitation current 0.33A ElectroMagnetic brake_Static friction torque Min. 8kgf.cm ElectroMagnetic brake_Rotation part inertia moment 29×10@(^-7)kgf.cm² ElectroMagnetic brake_B type brake Power on: brake is released, power off: brake is operating ElectroMagnetic brake_Operating time Max. 20ms ElectroMagnetic brake_Releasing time Max. 25ms Max. allowable torque 50kgf.cm Reduction ratio 1:10 Allowable speed range 0 to 180rpm Backlash ±20'(0.33˚) Absolute positon error ±20'(0.33˚) Lost motion ±20'(0.33˚) Weight Approx. 1.65kg(approx. 1.57kg)
