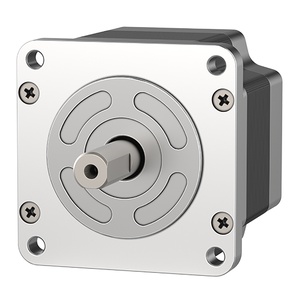

Autonics A41K-M599W-S 5-Phase Stepper Motor Driver

Name: Autonics A41K-M599W-S
Brand: Autonics
SKU: A41K-M599W-S
Rating: 4.5 (4 reviews)

The Autonics A41K-M599W-S 5-Phase Stepper Motor Driver offers 98mmmotor length, Dual shaft type, Standard wire connection, 1.4A/Phase current. Manufactured by Autonics under the 5-Phase Stepper Motor Driver category, this model belongs to the Autonics AK Series.

Datasheet

Brand	Autonics
Product Type	5-Phase Stepper Motor Driver
Model Number	A41K-M599W-S

Autonics A41K-M599W-S 5-Phase Stepper Motor Driver – Technical Specifications

Specification	Value
Motor length	98mm
Shaft type	Dual shaft
Wire connection	Standard
Rated current	1.4A/Phase
Basic Step Angle [FULL/HALF]	0.72º/0.36º
Max. holding torque	41kgf.cm
Rotor Moment Of Inertia	2700g·cm²
Winding Resistance	2.6Ω
Protection structure	IP30
ElectroMagnetic brake_Rated excitation voltage	24VDC @(=)±10%(no-polarity)
ElectroMagnetic brake_Rated excitation current	0.62A
ElectroMagnetic brake_Static friction torque	40kgf.cm
ElectroMagnetic brake_Rotation part inertia moment	153×10@(^-7)kgf.cm²
ElectroMagnetic brake_B type brake	Power on: brake is released, power off: brake is operating
ElectroMagnetic brake_Operating time	Max. 60ms
ElectroMagnetic brake_Releasing time	Max. 15ms
Weight	Approx. 3.25kg(approx. 2.8kg)
