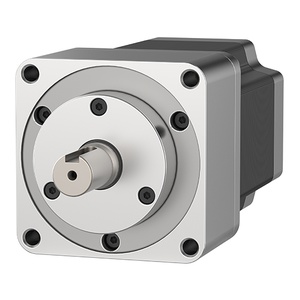

Home Autonics 5-Phase Stepper Motor Driver 5-Phase Series A200K-M599W-G7.2 Autonics A200K-M599W-G7.2 5-Phase Stepper Motor Driver The Autonics A200K-M599W-G7.2 5-Phase Stepper Motor Driver offers 145mm motor length, Dual shaft type, Pentagon wire connection, 1.4A/Phase current. Manufactured by Autonics under the 5-Phase Stepper Motor Driver category, this model belongs to the Autonics AK Series.
Brand Autonics Product Type 5-Phase Stepper Motor Driver Model Number A200K-M599W-G7.2
Autonics A200K-M599W-G7.2 5-Phase Stepper Motor Driver – Technical Specifications Specification Value Motor length 145mm Shaft type Dual shaft Wire connection Pentagon Rated current 1.4A/Phase Basic Step Angle [FULL/HALF] 0.1º/0.05º Rotor Moment Of Inertia 2700g·cm² Winding Resistance 2.6Ω Protection structure IP30 ElectroMagnetic brake_Rated excitation voltage 24VDC @(=)±10%(no-polarity) ElectroMagnetic brake_Rated excitation current 0.62A ElectroMagnetic brake_Static friction torque 40kgf.cm ElectroMagnetic brake_Rotation part inertia moment 153×10@(^-7)kgf.cm² ElectroMagnetic brake_B type brake Power on: brake is released, power off: brake is operating ElectroMagnetic brake_Operating time Max. 15ms ElectroMagnetic brake_Releasing time Max. 60ms Max. allowable torque 200kgf.cm Reduction ratio 1:7.2 Allowable speed range 0 to 250rpm Backlash ±35'(0.58˚) Weight Approx. 4.88kg(approx. 4.4kg)
