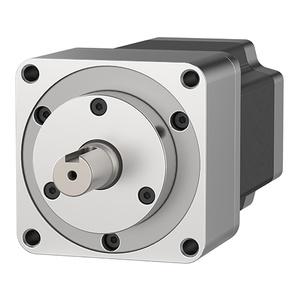

Home Autonics 5-Phase Stepper Motor Driver 5-Phase Series A200K-M599-G10 Autonics A200K-M599-G10 5-Phase Stepper Motor Driver The Autonics A200K-M599-G10 5-Phase Stepper Motor Driver offers 145mm motor length, Single shaft type, Pentagon wire connection, 1.4A/Phase current. Manufactured by Autonics under the 5-Phase Stepper Motor Driver category, this model belongs to the Autonics AK Series.
Brand Autonics Product Type 5-Phase Stepper Motor Driver Model Number A200K-M599-G10
Autonics A200K-M599-G10 5-Phase Stepper Motor Driver β Technical Specifications Specification Value Motor length 145mm Shaft type Single shaft Wire connection Pentagon Rated current 1.4A/Phase Basic Step Angle [FULL/HALF] 0.072ΒΊ/0.036ΒΊ Rotor Moment Of Inertia 2700gΒ·cmΒ² Winding Resistance 2.6Ξ© Protection structure IP30 ElectroMagnetic brake_Rated excitation voltage 24VDC @(=)Β±10%(no-polarity) ElectroMagnetic brake_Rated excitation current 0.62A ElectroMagnetic brake_Static friction torque 40kgf.cm ElectroMagnetic brake_Rotation part inertia moment 153Γ10@(^-7)kgf.cmΒ² ElectroMagnetic brake_B type brake Power on: brake is released, power off: brake is operating ElectroMagnetic brake_Operating time Max. 15ms ElectroMagnetic brake_Releasing time Max. 60ms Max. allowable torque 200kgf.cm Reduction ratio 1:10 Allowable speed range 0 to 180rpm Backlash Β±35'(0.58Λ) Weight Approx. 4.88kg(approx. 4.4kg)
