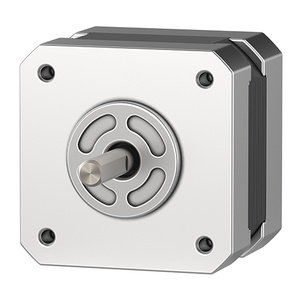

Home Autonics 5-Phase Stepper Motor Driver 5-Phase Series A1K-S543 Autonics A1K-S543 5-Phase Stepper Motor Driver The Autonics A1K-S543 5-Phase Stepper Motor Driver offers 33mm motor length, Single shaft type, Pentagon wire connection, 0.75A/Phase current. Manufactured by Autonics under the 5-Phase Stepper Motor Driver category, this model belongs to the Autonics AK Series.
Brand Autonics Product Type 5-Phase Stepper Motor Driver Model Number A1K-S543
Autonics A1K-S543 5-Phase Stepper Motor Driver – Technical Specifications Specification Value Motor length 33mm Shaft type Single shaft Wire connection Pentagon Rated current 0.75A/Phase Basic Step Angle [FULL/HALF] 0.72º/0.36º Max. holding torque 1.3kgf.cm Rotor Moment Of Inertia 35g·cm² Winding Resistance 1.7Ω Protection structure IP30 ElectroMagnetic brake_Rated excitation voltage 24VDC @(=)±10%(no-polarity) ElectroMagnetic brake_Rated excitation current 0.2A ElectroMagnetic brake_Static friction torque 1.8kgf.cm ElectroMagnetic brake_Rotation part inertia moment 3×10@(^-7)kgf.cm² ElectroMagnetic brake_B type brake Power on: brake is released, power off: brake is operating ElectroMagnetic brake_Operating time Max. 25ms ElectroMagnetic brake_Releasing time Max. 15ms Weight Approx. 0.34kg(approx. 0.25kg)
