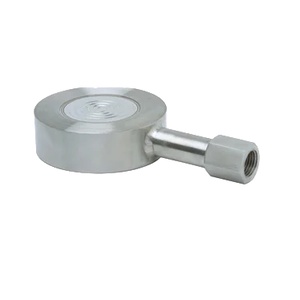

Aims Control Pan Cake Diaphragm Seal
Technical Specifications of AIMS Control Pan Cake Diaphragm Seal:
| Brand Name | AIMS Controls |
| Product Name | Pressure Diaphragm Seal |
| Description | Flush fitment in pipeline, Laser welded flush diaphragm, Optional flushing ring, Optional exotic materials |
AIMS Control Pan Cake Diaphragm Seal Technical Specifications
| Specification | Value |
|---|---|
| Brand Name | AIMS Controls |
| Product Name | Pressure Diaphragm Seal |
| Description | Flush fitment in pipeline, Laser welded flush diaphragm, Optional flushing ring, Optional exotic materials |
| Range | -1…0 bar up to 0…250 bar |
| Wetted parts | AISI 316L SS, Monel, Hastelloy C (others on request) |
| Sealing fluid | Silicon DC 70 (7…371°C) (others on request) |
| Protection on wetted parts | Optional |
| Assembly | Remote |
