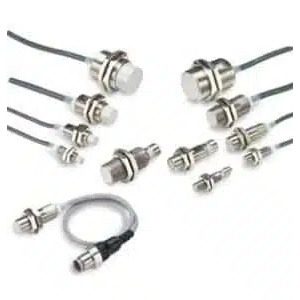

E2E-X3D1-M1GJ 0.3M - Omron Proximity Sensor NO
E2E-X3D1-M1GJ 0.3M is a compact Omron Proximity Sensor NO with a 3 mm sensing range and M12 shielded body. It operates on 12–24 VDC with a DC 2-wire NO output, offering reliable detection of ferrous metal objects in harsh environments. The Omron E2E-X3D1-M1GJ 0.3M is IP67-rated and resistant to oil and vibration.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | E2E-X3D1-M1GJ 0.3M |
🛠️ Get Quotes Instantly from Omron Vendors
Omron Proximity Sensor NO E2E-X3D1-M1GJ 0.3M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting distance | 0 to 2.4 mm |
| Output type | DC 2-wire |
| Operation mode | NO |
| Power supply | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Connection method | M12 Standard Prewired Connector Models (0.3 m) |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 12 × 12 × 1 mm |
| Response frequency | 1 kHz |
| Leakage current | 0.8 mA max. |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient temperature range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
As a trusted name in factory automation, Omron delivers durable sensing solutions designed for demanding industrial environments. The Omron E2E-X3D1-M1GJ 0.3M is a high-performance proximity sensor that meets rigorous application needs with accuracy, speed, and long-term stability. This Omron Proximity Sensor NO is engineered to support machine uptime and reduce maintenance cycles in compact control panels and field installations. The E2E X3D1 M1GJ 0.3M reflects Omron’s commitment to smart, reliable automation.
The Omron E2E-X3D1-M1GJ 0.3M features a shielded M12 housing and supports a sensing distance of 3 mm. It uses a standard iron target and detects ferrous metals with high precision. Its DC 2-wire output is NO-configured, and it includes both red and green indicators for operational feedback. The model operates between −25°C to 70°C with surge protection and short-circuit safety. With IP67 protection and an oil-resistant PVC cable, it's ready for industrial use. View full specifications on the official Omron product page.
Thanks to its fast 1 kHz response and rugged construction, the E2E X3D1 M1GJ 0.3M is ideal for detecting metal parts on conveyors, stamping machines, and packaging lines. Its compact size and quick setup make it suitable for automation panels with limited space. For dependable performance in dynamic environments, the Omron E2E-X3D1-M1GJ 0.3M stands out as a proven Omron Proximity Sensor NO solution.
