Wenglor P1PY201 Photoelectric Sensor

The P1PY201 Wenglor Laser Distance Sensors supports 0 to 10000 mm working range with 50 Hz switching frequency operation. The P1PY201 belongs to Wenglor sensing solutions and supports Wenglor Laser Distance Sensors applications with 15 ms response time, IP67 and IP68 protection, 660 nm red laser, and M12 5-pin connection for industrial automation systems.

Wenglor P1PY201
Datasheet
BrandWenglor
Product TypePhotoelectric Sensor
Model NumberP1PY201

Wenglor P1PY201 Photoelectric Sensor – Technical Specifications

SpecificationValue
Working Range0 ... 10,000 mm
Setting Range50 ... 10,000 mm
Switching Hysteresis< 15 mm
Light SourceLaser (red)
Wavelength660 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)1
Beam Divergence< 2 mrad
Reflector requiredno
Supply Voltage18 ... 30 V DC
Current Consumption (Ub = 24 V)< 60 mA
Switching Frequency50 Hz
Response Time15 ms *
Temperature Range-40 ... 50 °C**
Number of Switching Outputs2
Switching Output Voltage Drop< 2.5 V
Housing MaterialPlastic, ABS
Optic CoverPlastic, PMMA
Degree of ProtectionIP67, IP68
ConnectionM12 × 1; 5-pin
CircuitNC/NO NC NC+NO NO
Temperature Drift< 0.4 mm/K
Switching Output/Switching Current100 mA
OutputError Output Push-pull NPN PNP Warning output
Weight45 g

Related Products

P1PX203P1PX203
P1PY207P1PY207

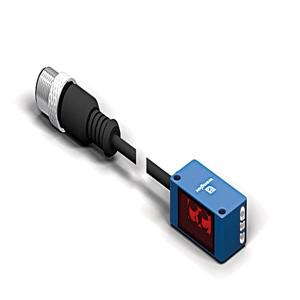

P1KY106P1KY106
