Wenglor P1PY101 Laser Distance Sensors

The P1PY101 Wenglor Laser Distance Sensors supports 0 to 10000 mm working range with 15 ms response time operation. The P1PY101 belongs to Wenglor sensing solutions and supports Wenglor Laser Distance Sensors applications with 50 Hz switching frequency, IP67 and IP68 protection, 660 nm red laser, and M12 5-pin connection for industrial automation environments.

Wenglor P1PY101
Datasheet
BrandWenglor
Product TypePhotoelectric Sensor
Model NumberP1PY101

Wenglor P1PY101 Laser Distance Sensors - Technical Specifications

SpecificationValue
Working Range0 ... 10,000 mm
Setting Range50 ... 10,000 mm
Switching Hysteresis< 15 mm
Light SourceLaser (red)
Wavelength660 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)1
Beam Divergence< 2 mrad
Reflector requiredno
Supply Voltage18 ... 30 V DC
Current Consumption (Ub = 24 V)< 35 mA
Switching Frequency50 Hz
Response Time15 ms
Temperature Range-40 ... 50 °C
Number of Switching Outputs2
Switching Output Voltage Drop< 2.5 V
Housing MaterialPlastic, ABS
Optic CoverPlastic, PMMA
Degree of ProtectionIP67, IP68
ConnectionM12 × 1; 5-pin
CircuitNC/NO NC NC+NO NO
Temperature Drift< 0.4 mm/K
Switching Output/Switching Current100 mA
OutputError Output Push-pull NPN PNP Warning output
Weight41 g

Related Products

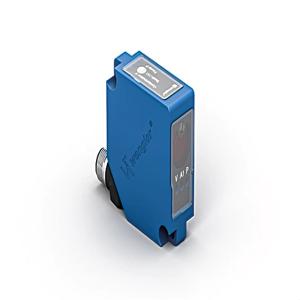

OY2P303A0135OY2P303A0135

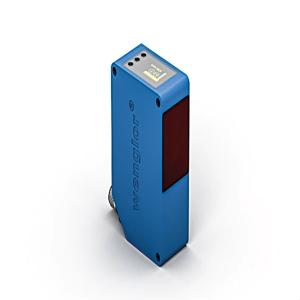

OY1TA603P0003OY1TA603P0003

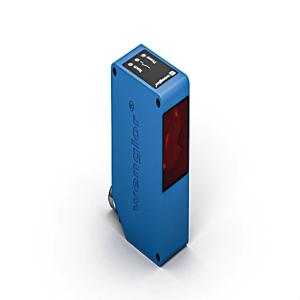

OY2TA403AT235OY2TA403AT235
