cMT106X - Weintek HMI Touch Panel

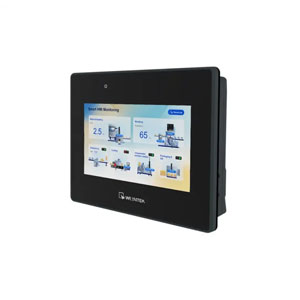

Weintek HMI Touch Panel cMT106X
| Brand | Weintek |
| Product Type | HMI |
| Product | cMT106X |
Weintek HMI Touch Panel cMT106X Technical Specifications:
| Specification | Value |
|---|
| Display - Size | 10.1” WVA |
| Display - Resolution | 1024x600 |
| Display - Brightness (cd/m2) | 350 |
| Display - Contrast Ratio | 1000:1 |
| Display - Backlight Type | LED |
| Display - Backlight Life Time | >50,000 hrs |
| Display - Colors | 16.7M |
| Display - LCD Viewing Angle (T/B/L/R) | 89/89/89/89 |
| Display - Pixel Pitch (mm) | 0.2175(H) x 0.2088(V) |
| Touch Panel - Type | 4-wire Resistive |
| Touch Panel - Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Memory - Flash | 4 GB |
| Memory - RAM | 1 GB |
| Processor | Quad core RISC |
| USB Host | USB 2.0 x 1 |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Power Consumption | 720mA@24VDC |
| Voltage Resistance | 500VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions W x H x D (mm) | 271 x 213 x 38 |
| Panel Cutout (mm) | 260 x 202 mm |
| Weight | Approx. 1.2 kg |
| Mount | Panel mount, VESA mount 75 x 75 mm |
| Storage Temperature | -20° ~ 60°C |
| Operating Temperature | 0° ~ 50°C |
| Relative Humidity | 10%~90% (non-condensing) |
| Altitude (Air Pressure) | Below 3000 meters |
