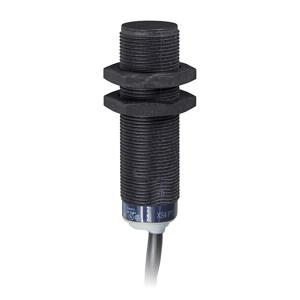

XS4P18MA230K: Telemecanique M18, 70 mm Length, Discrete Inductive Sensors
Technical Specifications of Telemecanique M18, 70 mm Length, Discrete Inductive Sensors XS4P18MA230K:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Male connector 1/2"20 UNF, 3 pins |
Telemecanique M18, 70 mm Length, Discrete Inductive Sensors XS4P18MA230K Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS4 |
| Sensor design | Cylindrical M18 |
| Size | 70 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Plastic |
| Electrical connection | Male connector 1/2"20 UNF, 3 pins |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA DC, 5...300 mA AC |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | PPS |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 2000 Hz DC, <= 25 Hz AC |
| Voltage drop | <5.5 V (closed) |
| Current consumption | - |
| Delay first up | 40.0000 MILLISECOND |
| Delay response | 0.2000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.2000 MILLISECOND |
| Product certifications | CCC CSA ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M18 X 1 |
Give Us a Call for Telemecanique M18, 70 mm Length, Discrete Inductive Sensors XS4P18MA230K with budget-friendly prices. Technical Attributes are XS4P18MA230K include INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC/DC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA DC, 5...300 mA AC, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PPS, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz DC, <= 25 Hz AC. Navigate Your Needs with a Quote for your requirement of Telemecanique M18, 70 mm Length, Discrete Inductive Sensors. We excel in offering more cost-effective and supportive solutions than other Competitors.
