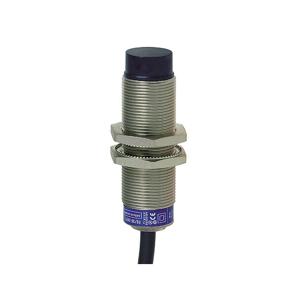

XS2M18MA250KTF: Telemecanique 72 mm Length, Discrete Proximity Sensors
Technical Specifications of Telemecanique 72 mm Length, Discrete Proximity Sensors XS2M18MA250KTF:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 2-wire |
| Discrete Output Type | - |
| Electrical Connection | Male connector 1/2"20 UNF, 3 pins |
Telemecanique 72 mm Length, Discrete Proximity Sensors XS2M18MA250KTF Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M18 |
| Size | 72 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Metal |
| Electrical connection | Male connector 1/2"20 UNF, 3 pins |
| [Us] rated supply voltage | 24...210 V DC, 24...240 V AC 50/60 Hz |
| Output circuit type | AC/DC |
| Switching capacity in mA | 5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow), supply on: 1 LED (green) |
| Wire insulation material | - |
| Switching frequency | <= 2000 Hz DC, <= 25 Hz AC |
| Voltage drop | <5.5 V (closed state) |
| Current consumption | - |
| Delay first up | 70.0000 MILLISECOND |
| Delay response | 2.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 4.0000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-7 |
| Thread type | M18 x 1 |
Get A Quote for Telemecanique 72 mm Length, Discrete Proximity Sensors XS2M18MA250KTF at unbeatable prices. Detailed Specifications of XS2M18MA250KTF feature Inductive proximity sensor, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...210 V DC, 24...240 V AC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz DC, <= 25 Hz AC. Match Your Needs with a Quote for your requirement of Telemecanique 72 mm Length, Discrete Proximity Sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
