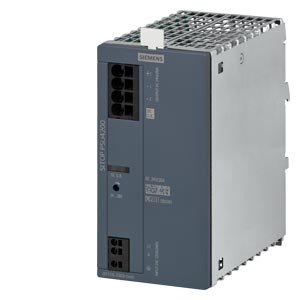

Siemens 6EP3336-3SB00-0AX0 Power Supplies
Siemens 6EP3336-3SB00-0AX0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3336-3SB00-0AX0 |
Siemens 6EP3336-3SB00-0AX0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | 1-phase AC |
| minimum rated value | 120 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| type of signal at output | Signal contact (signal load capacity: 10 mA) for DC OK |
| rated value | 20 A |
| rated range | 0 ... 20 A; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 480 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | push-in terminals |
| width × height × depth of the enclosure | 70 × 135 × 125 mm |
| installation width × mounting height | 70 mm × 225 mm |
| Top | 45 mm |
| Bottom | 45 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.93 kg |
