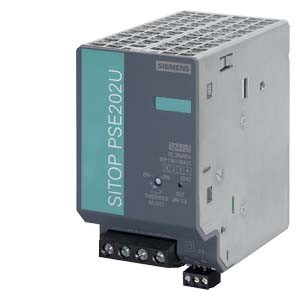

Siemens 6EP1961-3BA21 Power Supplies
Siemens 6EP1961-3BA21 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP1961-3BA21 |
Siemens 6EP1961-3BA21 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | DC voltage |
| supply voltage at DC | 24 ... 24 V |
| input voltage at DC | 24 ... 28.8 V |
| rated value | 40 A |
| rated range | 40 A; max. aggregate current 40 A; +60 ... +70 °C: derating 3%/K |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 70 × 125 × 120 mm |
| installation width × mounting height | 70 mm × 225 mm |
| Top | 50 mm |
| Bottom | 50 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.5 kg |
