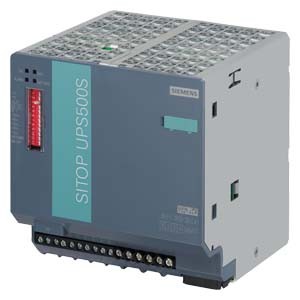

Siemens 6EP1933-2EC41 Power Supplies
Siemens 6EP1933-2EC41 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP1933-2EC41 |
Siemens 6EP1933-2EC41 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| supply voltage at DC | 24 V |
| input voltage at DC | 22 ... 29 V |
| rated value | 15 A |
| supplied active power typical | 360 W |
| design of the interface | USB |
| protection class IP | IP20 |
| during transport | 40 ... +70 |
| during storage | 40 ... +70 |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 120 × 125 × 125 mm |
| installation width × mounting height | 120 mm × 225 mm |
| Top | 50 mm |
| Bottom | 50 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 1 kg |
