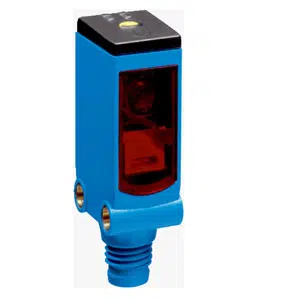

Sick 1,000 Hz Frequency Photo Sensor WTB4S-3P2234, 1042050 Technical Specifications:
Specification
Value
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
Background suppression
Sensing range max.
4 mm ... 120 mm 1)
Sensing range
10 mm ... 120 mm 1)
Light source
PinPoint LED 2)
Type of light
Visible red light
Light spot size (distance)
Ø 2.5 mm (50 mm)
Wave length
650 nm
Adjustment
Cable, Single teach-in button 3)
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
< 5 Vpp 2)
Current consumption
20 mA 3)
Protection class
III
Digital Output type
PNP
Switching mode
Light switching
Output current Imax.
≤ 100 mA
Response time
< 0.5 ms 4)
Switching frequency
1,000 Hz 5)
Housing
Rectangular
Design detail
Slim
Dimensions (W x H x D)
12.2 mm x 41.8 mm x 17.3 mm
Connection
Male connector M8, 4-pin
Housing material
Plastic, ABS
Front screen material
Plastic, PMMA
Enclosure rating
IP67, IP66
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Weight
30 g
Talk to Our Engineer for Sick 1,000 Hz Frequency Photo Sensor WTB4S-3P2234 part no: 1042050 at unbeatable prices. The Main Technical Parameters of WTB4S-3P2234, 1042050 are Photoelectric retro-reflective sensor, Background suppression, 10 mm ... 120 mm 1) sensing range, PinPoint LED 2) Light source, Visible red light, Ø 2.5 mm (50 mm) Light spot size, 650 nm wave length, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp 2), 20 mA 3), PNP output, Light switching, ≤ 100 mA output current, < 0.5 ms 4), 1,000 Hz 5), Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Male connector M8, 4-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. Capture the Best Deal with a Quote for your requirement of Sick 1,000 Hz Frequency Photo Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
