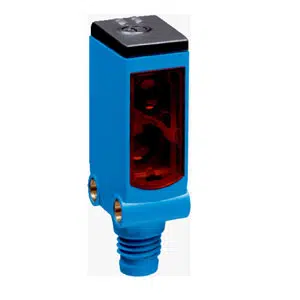

WTB4S-3P2131: 1042056 - Sick 120mm Retro-reflective sensor

Spec	Value
Sensing Range Max	4 mm ... 120 mm 1)
Sensing Range	10 mm ... 120 mm 1)
Light Source	PinPoint LED 2)
Connection	Connector M8, 3-pin

Sick 120mm Retro-reflective sensor WTB4S-3P2131, 1042056 Technical Specifications:

Specification	Value
Functional principle	Photoelectric retro-reflective sensor
Functional principle detail	Background suppression
Sensing range max.	4 mm ... 120 mm 1)
Sensing range	10 mm ... 120 mm 1)
Light source	PinPoint LED 2)
Type of light	Visible red light
Light spot size (distance)	Ø 2.5 mm (50 mm)
Wave length	650 nm
Adjustment	Potentiometer, 5 turns
Supply voltage UB	10 V DC ... 30 V DC 1)
Ripple	< 5 Vpp 2)
Current consumption	20 mA 3)
Protection class	III
Digital Output type	NPN
Switching mode	Light switching
Output current Imax.	≤ 100 mA
Response time	< 0.5 ms 4)
Switching frequency	1,000 Hz 5)
Housing	Rectangular
Design detail	Slim
Dimensions (W x H x D)	12.2 mm x 41.8 mm x 17.3 mm
Connection	Connector M8, 3-pin
Housing material	Plastic, ABS
Front screen material	Plastic, PMMA
Enclosure rating	IP67, IP66
Ambient operating temperature	–40 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +75 °C
Weight	30 g

Send Us an Email for Sick 120mm Retro-reflective sensor WTB4S-3P2131 part no: 1042056 with budget-friendly prices. Technical Attributes of WTB4S-3P2131, 1042056 includes Photoelectric retro-reflective sensor, Background suppression, 10 mm ... 120 mm 1) sensing range, PinPoint LED 2) Light source, Visible red light, Ø 2.5 mm (50 mm) Light spot size, 650 nm wave length, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp 2), 20 mA 3), NPN output, Light switching, ≤ 100 mA output current, < 0.5 ms 4), 1,000 Hz 5), Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Connector M8, 3-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. Now's the Time to Secure Quote for your requirement of Sick 120mm Retro-reflective sensor. Rest assured, our pricing and support outshine other Suppliers.
