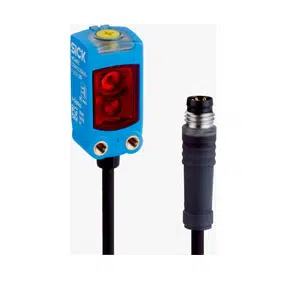

WTB4FP-31311120ZZZ: 1107692 - Sick Point-shaped Photoelectric Sensor

Spec	Value
Dimensions (W x H x D)	16 mm x 40.1 mm x 12.1 mm
Light Source	PinPoint LED
Output Type	Push-pull: PNP/NPN
Connection	Cable with connector M8, 3-pin, 110 mm

Sick Point-shaped Photoelectric Sensor WTB4FP-31311120ZZZ, 1107692 Technical Specifications:

Specification	Value
Functional principle	Photoelectric proximity sensor
Functional principle detail	Background suppression
Sensing range min.	4 mm
Sensing range max.	220 mm
Light source	PinPoint LED
Type of light	Visible red light
Shape of light spot	Point-shaped
Light spot size (distance)	Ø 4.2 mm (130 mm)
Wave length	635 nm
Smallest detectable object (MDO) typ.	0.2 mm (At 130 mm distance (object with 90% remission (complies with standard white according to DIN 5033)))
Adjustment	Teach-Turn adjustment
Special applications	-
Indication	LED blue, LED green, LED yellow
Supply voltage UB	10 V DC ... 30 V DC 1)
Ripple	< 5 Vpp
Usage category	DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2)
Current consumption	≤ 25 mA, without load. At UB = 24 V
Protection class	III
Digital output Number	1
Output type	Push-pull: PNP/NPN
Signal voltage PNP HIGH/LOW	Approx. UB-2.5 V / 0 V
Signal voltage NPN HIGH/LOW	Approx. UB / < 2.5 V
Output current Imax.	≤ 100 mA
Circuit protection outputs	Reverse polarity protected Overcurrent protected Short-circuit protected
Response time	≤ 500 µs 2)
Switching frequency	1,000 Hz 3)
Housing	Rectangular
Design detail	Flat
Dimensions (W x H x D)	16 mm x 40.1 mm x 12.1 mm
Connection	Cable with connector M8, 3-pin, 110 mm
Conductor size	0.14 mm²
Cable diameter	Ø 3.4 mm
Length of cable (L)	77 mm
Cable	PVC
Housing material	Plastic, VISTAL®
Front screen material	Plastic, PMMA
Enclosure rating	IP66 (EN 60529), IP67 (EN 60529)
Ambient operating temperature	–40 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +75 °C

Obtain a Quote for Sick Point-shaped Photoelectric Sensor WTB4FP-31311120ZZZ part no: 1107692 at economical prices. Specifications Overview for WTB4FP-31311120ZZZ, 1107692 reveals Photoelectric proximity sensor, Background suppression, 220 mm sensing range, PinPoint LED Light source, Visible red light, Point-shaped Light spot, Ø 4.2 mm (130 mm) line spot size, 635 nm wave length, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp ripple, ≤ 25 mA, without load. At UB = 24 V current consumption, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 500 µs 2) response time, 1,000 Hz 3) frequency, Rectangular housing, Flat design, 16 mm x 40.1 mm x 12.1 mm dimensions, PVC Cable with connector M8, 3-pin, 110 mm, 77 mm cable length. Take the First Step with a Quote for your requirement of Sick Point-shaped Photoelectric Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
