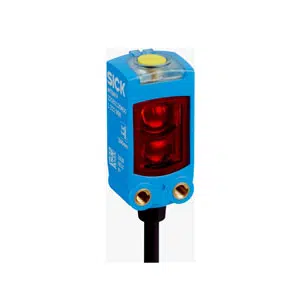

WTB4FP-1H16D250A00: 1121417 - Sick MultiSwitch Photoelectric Sensor

Spec	Value
Dimensions (W x H x D)	16 mm x 40.1 mm x 12.1 mm
Light Source	PinPoint LED
Output Type	Push-pull: PNP/NPN
Connection	Cable, 4-wire, 2 m

Sick MultiSwitch Photoelectric Sensor WTB4FP-1H16D250A00, 1121417 Technical Specifications:

Specification	Value
Functional principle	Photoelectric proximity sensor
Functional principle detail	Background suppression, MultiSwitch, NarrowBeam
Sensing range min.	4 mm
Sensing range max.	100 mm
Light source	PinPoint LED
Type of light	Visible red light
Shape of light spot	Point-shaped
Light spot size (distance)	Ø 2 mm (50 mm)
Wave length	635 nm
Smallest detectable object (MDO) typ.	0.1 mm (At 50 mm distance (object with 90% remission (complies with standard white according to DIN 5033)))
Adjustment	Teach-Turn adjustment, IO-Link
Special applications	Detecting flat objects, Detecting small objects
Indication	LED blue, LED green, LED yellow
Supply voltage UB	10 V DC ... 30 V DC 1)
Ripple	< 5 Vpp
Usage category	DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2)
Current consumption	≤ 25 mA, without load. At UB = 24 V
Protection class	III
Digital output Number	2 (individually adjustable)
Output type	Push-pull: PNP/NPN
Signal voltage PNP HIGH/LOW	Approx. UB-2.5 V / 0 V
Signal voltage NPN HIGH/LOW	Approx. UB / < 2.5 V
Output current Imax.	≤ 100 mA
Circuit protection outputs	Reverse polarity protected Overcurrent protected Short-circuit protected
Response time	≤ 1,000 µs 2)
Switching frequency	500 Hz 3)
Housing	Rectangular
Design detail	Flat
Dimensions (W x H x D)	16 mm x 40.1 mm x 12.1 mm
Connection	Cable, 4-wire, 2 m
Conductor size	0.14 mm²
Cable diameter	Ø 3.4 mm
Length of cable (L)	2 m
Cable	PVC
Housing material	Plastic, VISTAL®
Front screen material	Plastic, PMMA
Enclosure rating	IP66 (EN 60529), IP67 (EN 60529)
Ambient operating temperature	–40 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +75 °C

Get A Quote for Sick MultiSwitch Photoelectric Sensor WTB4FP-1H16D250A00 part no: 1121417 at the best price. Here are the brief Technical Specifications of WTB4FP-1H16D250A00, 1121417 are Photoelectric proximity sensor, Background suppression, MultiSwitch, NarrowBeam, 100 mm sensing range, PinPoint LED Light source, Visible red light, Point-shaped Light spot, Ø 2 mm (50 mm) line spot size, 635 nm wave length, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp ripple, ≤ 25 mA, without load. At UB = 24 V current consumption, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 1,000 µs 2) response time, 500 Hz 3) frequency, Rectangular housing, Flat design, 16 mm x 40.1 mm x 12.1 mm dimensions, PVC Cable, 4-wire, 2 m, 2 m cable length. It's Time to get a Quote for your requirement of Sick MultiSwitch Photoelectric Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
