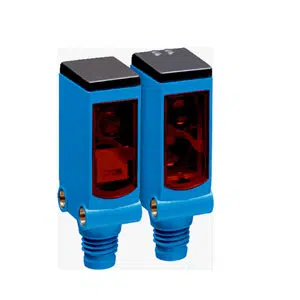

Sick 30 mA Current Throughbeam Sensor WSE4SLC-3P2236A71, 1080961 Technical Specifications:
Specification
Value
Functional principle
Through-beam photoelectric sensor
Functional principle detail
-
Sensing range max.
0 m ... 60 m
Sensing range
0 m ... 50 m
Light source
Laser 1)
Type of light
Visible red light
Light spot size (distance)
Ø 1 mm (500 mm)
Wave length
650 nm
Adjustment
IO-Link
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
< 5 Vpp 2)
Current consumption
30 mA 3)
Protection class
III
Digital Output type
PNP 4) 5)
Switching mode
Light/dark switching 4)
Output current Imax.
≤ 100 mA
Response time
≤ 0.5 ms 6)
Switching frequency
1,000 Hz 8)
Housing
Rectangular
Design detail
Slim
Dimensions (W x H x D)
12.2 mm x 41.8 mm x 17.3 mm
Connection
Male connector M8, 4-pin
Housing material
Plastic, Novodur
Front screen material
Plastic, PMMA
Enclosure rating
IP66, IP67
Ambient operating temperature
–10 °C ... +50 °C
Ambient temperature, storage
–30 °C ... +70 °C
Weight
100 g
