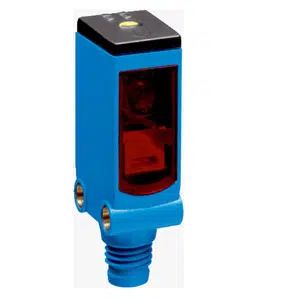

Sick 20 mA Current Photoelectric Sensor WLG4SC-3P2232A00, 1057177 Technical Specifications:
Specification
Value
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
Autocollimation
Sensing range max.
0.01 m ... 5 m 1)
Sensing range
0 m ... 3 m 1)
Light source
PinPoint LED 2)
Type of light
Visible red light
Light spot size (distance)
Ø 45 mm (1.5 m)
Wave length
650 nm
Adjustment
IO-Link, Single teach-in button
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
< 5 Vpp 2)
Current consumption
20 mA 3)
Protection class
III
Digital Output type
PNP 4)
Switching mode
Light/dark switching
Output current Imax.
≤ 100 mA
Response time
≤ 500 µs
Switching frequency
1,000 Hz
Housing
Rectangular
Design detail
Slim
Dimensions (W x H x D)
12.2 mm x 41.8 mm x 17.3 mm
Connection
Male connector M8, 4-pin
Housing material
Plastic, ABS
Front screen material
Plastic, PMMA
Enclosure rating
IP67, IP66
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Weight
30 g
Send Your Inquiry for Sick 20 mA Current Photoelectric Sensor WLG4SC-3P2232A00 part no: 1057177 at unbeatable prices. The Main Technical Parameters of WLG4SC-3P2232A00, 1057177 feature Photoelectric retro-reflective sensor, Autocollimation, 0 m ... 3 m 1) sensing range, PinPoint LED 2) Light source, Visible red light, Ø 45 mm (1.5 m) Light spot size, 650 nm wave length, Detecting transparent objects Special applications, 10 V DC ... 30 V DC 1) Supply voltage, < 5 Vpp 2), 20 mA 3), PNP 4) output, Light/dark switching, ≤ 100 mA output current, ≤ 500 µs, 1,000 Hz, Rectangular housing, Slim design, 12.2 mm x 41.8 mm x 17.3 mm dimensions, Male connector M8, 4-pin, Plastic, ABS, Plastic, PMMA, IP67, IP66 Enclosure rating. Don't Miss Out on a Quote for your requirement of Sick 20 mA Current Photoelectric Sensor. Experience the difference with our competitive pricing and superior support over other Traders.
