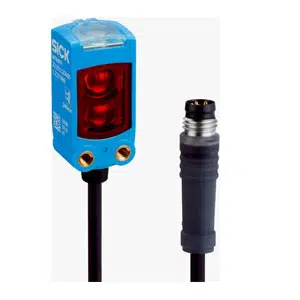

Sick 4.5m Range Photoelectric Sensor WLD4FP-313121A0ZZZ, 1121474 Technical Specifications:
Specification
Value
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
With minimum distance to reflector (dual lens system)
Sensing range max.
4.5 m
Sensing range
-
Light source
PinPoint LED
Type of light
Visible red light
Light spot size (distance)
Ø 38 mm (1,000 mm)
Wave length
635 nm
Adjustment
None
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
≤ 5 Vpp
Current consumption
≤ 20 mA, without load. At UB = 24 V
Protection class
III
Digital Output type
Push-pull: PNP/NPN
Switching mode
-
Output current Imax.
≤ 100 mA
Response time
≤ 500 µs
Switching frequency
1,000 Hz 3)
Housing
Rectangular
Design detail
Flat
Dimensions (W x H x D)
16 mm x 40.1 mm x 12.1 mm
Connection
Cable with connector M8, 3-pin, 110 mm
Housing material
Plastic, VISTAL®
Front screen material
Plastic, PMMA
Enclosure rating
IP66 (EN 60529), IP67 (EN 60529), IP69 (EN 60529)
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Weight
Approx. 30 g
Call us for Sick 4.5m Range Photoelectric Sensor WLD4FP-313121A0ZZZ part no: 1121474 at the lowest pricing. In-depth Technical Analysis of WLD4FP-313121A0ZZZ, 1121474 feature Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system), PinPoint LED Light source, Visible red light, Ø 38 mm (1,000 mm) Light spot size, 635 nm wave length, LED Indication, 10 V DC ... 30 V DC 1) Supply voltage, ≤ 5 Vpp, ≤ 20 mA, without load. At UB = 24 V, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 500 µs, 1,000 Hz 3), Rectangular housing, Flat design, 16 mm x 40.1 mm x 12.1 mm dimensions, Cable with connector M8, 3-pin, 110 mm, Plastic, VISTAL®, Plastic, PMMA, IP66 (EN 60529), IP67 (EN 60529), IP69 (EN 60529) Enclosure rating, Capture the Best Deal with a Quote for your requirement of Sick 4.5m Range Photoelectric Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
