With minimum distance to reflector (dual lens system)
Sensing range max.
4.5 m
Sensing range
-
Light source
PinPoint LED
Type of light
Visible red light
Light spot size (distance)
Ø 38 mm (1,000 mm)
Wave length
635 nm
Adjustment
Teach-in button, IO-Link
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
≤ 5 Vpp
Current consumption
≤ 20 mA, without load. At UB = 24 V
Protection class
III
Digital Output type
Push-pull: PNP/NPN
Switching mode
-
Output current Imax.
≤ 100 mA
Response time
≤ 500 µs
Switching frequency
1,000 Hz 3)
Housing
Rectangular
Design detail
Flat
Dimensions (W x H x D)
16 mm x 40.1 mm x 12.1 mm
Connection
Cable, 4-wire, 2 m
Housing material
Plastic, VISTAL®
Front screen material
Plastic, PMMA
Enclosure rating
IP66 (EN 60529), IP67 (EN 60529)
Ambient operating temperature
–40 °C ... +60 °C
Ambient temperature, storage
–40 °C ... +75 °C
Weight
Approx. 30 g

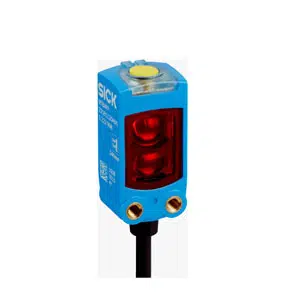

IndMALL Offers Sick 4.5m Retro-reflective Sensor WLD4FP-1H162130A00 part no: 1113192 at economical Choices. Product Tech Specs of WLD4FP-1H162130A00, 1113192 include Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system), PinPoint LED Light source, Visible red light, Ø 38 mm (1,000 mm) Light spot size, 635 nm wave length, LED Indication,10 V DC ... 30 V DC 1) Supply voltage, ≤ 5 Vpp, ≤ 20 mA, without load. At UB = 24 V, Push-pull: PNP/NPN output, ≤ 100 mA output current, ≤ 500 µs, 1,000 Hz 3), Rectangular housing, Flat design, 16 mm x 40.1 mm x 12.1 mm dimensions, Cable, 4-wire, 2 m, Plastic, VISTAL®, Plastic, PMMA, IP66 (EN 60529), IP67 (EN 60529)Enclosure rating. Now's the Time to Secure a Quote for your requirement of Sick 4.5m Retro-reflective Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
