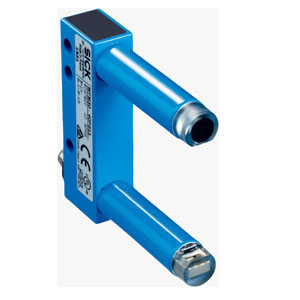

WFM30-40P311: 6037820 - Sick 30 mm Width Fork Sensor
| Brand | Sick |
| Product Type | Fork Sensor |
| Model Number | WFM30-40P311 |
Sick 30 mm Width Fork Sensor WFM30-40P311, 6037820 Technical Specifications:
| Specification | Value |
|---|---|
| Functional principle | Fork sensor |
| Dimensions (W x H x D) | 10 mm x 50 mm x 59.5 mm |
| Fork width | 30 mm |
| Fork depth | 42 mm |
| Minimum detectable object (MDO) | 0.8 mm |
| Light Source | LED, red |
| Adjustment | None |
| Current consumption | < 20 mA 1) |
| Switching frequency | 4 kHz 2) |
| Stability of response time | ± 15 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = VS – ≤ 1.5 V / LOW = 0 V, NPN: HIGH = approx. VS / LOW ≤ 1.5 V |
| Switching mode | Dark switching |
| Switching output hysteresis | - |
| Output current Imax. | 100 mA |
| Initialization time | 140 ms |
| Connection type | Connector M8, 3-pin |
| Protection class | III 3) |
| Circuit protection | UV connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse suppression |
| Enclosure rating | IP67 |
| Housing material | Metal, Aluminum |
The WFM30-40P311 Sick 30 mm Width Fork Sensor is a compact optical fork sensor designed for object detection in industrial automation systems. This model combines a 30 mm fork width, 42 mm fork depth, and 0.8 mm minimum detectable object to support accurate detection of small parts. Operating at a 4 kHz switching frequency, the WFM30-40P311 belongs to the WFE series and uses a PNP output suitable for common control interfaces.
In industrial environments, the WFM30-40P311 Sick 30 mm Width Fork Sensor is applied in conveyors, packaging machinery, counting systems, and automated assembly processes. The fixed fork geometry enables consistent detection of passing objects without alignment complexity. Red LED illumination and dark switching mode help maintain stable output signals during continuous operation in production lines.
The WFM30-40P311 from Sick provides defined electrical characteristics, IP67-rated metal housing, and integrated circuit protection for long-term industrial use. With an M8 connector interface, controlled output current, and compatibility within the WFE series, this Sick fork sensor aligns with automation system requirements. These specifications confirm the WFM30-40P311 as a reliable fork sensor choice for industrial automation applications.
