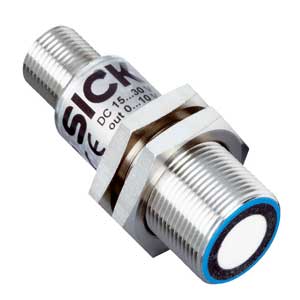

Sick UM18-211126111 Ultrasonic Sensor
The Sick UM18-211126111 Ultrasonic Sensor offers Cylindrical
, design 2 x LED indication, Straight
sending axis, Male connector, M12, 5-pin
connection. Manufactured by Sick under the Sick Ultrasonic Sensor category, this model belongs to the UM Series.
| Brand | Sick |
| Product Type | Ultrasonic Sensor |
| Product | UM18-211126111 |
Sick UM18-211126111 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Supply voltage Vs | DC 10 V ... 30 V |
| Power consumption | ≤ 1.2 W |
| Initialization time | < 300 ms |
| Housing material | Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Connection type | Male connector, M12, 5-pin |
| Indication | 2 x LED |
| Sending axis | Straight |
| Dimensions (W x H x D) | 18 mm x 18 mm x 52.7 mm |
| Enclosure rating | IP65 / IP67 |
| Weight | 25 g |
Get A Quote for Sick Brass Ultrasonic Sensor UM18-211126111 part no: 6048392 at unbeatable prices. Detailed specifications of UM18-211126111, 6048392 feature cylindrical design, DC 10 V to 30 V supply voltage, ≤ 1.2 W power consumption, and < 300 ms initialization time. The sensor comes with a metal (nickel-plated brass) housing, ultrasonic transducer made of polyurethane foam and glass epoxy resin, and a male M12, 5-pin connector. It also includes 2 x LED indication, straight mounting, and dimensions of 18 mm x 18 mm x 52.7 mm. Match your needs with a quote for your requirement of Sick Brass Ultrasonic Sensor. Our pricing and support are unrivaled, especially when compared to other distributors. Request the UM18-211126111 Price, UM18-211126111 Datasheet, and UM18-211126111 Manual for more details.
