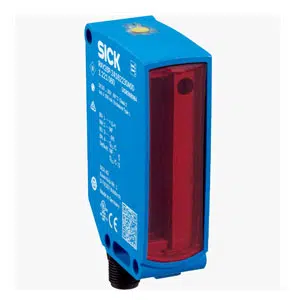

Sick RAY26P-1H162330A00 Photoelectric Sensor
The RAY26P-1H162330A00 Sick Reflex Array Photoelectric Sensor detects small objects across a 55 mm visible red light array.
This SICK model belongs to the SICK Photoelectric Sensor range and SICK photoelectric sensor series, with 0 m to 4.5 m sensing.
RAY26P-1H162330A00, Part No. 1221945, provides 3 mm, 5 mm, or 10 mm object detection, push-pull PNP/NPN output, 635 nm red light, M12 4-pin connection, IO-Link, BluePilot, and IP66/IP67 protection.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | RAY26P-1H162330A00 |
Sick RAY26P-1H162330A00 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation, Reflex Array |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 3 mm, position-independent detection within the light array (factory setting), adjustable via IO-Link incl. adjustable conveyor belt suppression, 5 mm, position-independent detection within the light array, adjustable via IO-Link incl. adjustable conveyor belt suppression, 10 mm, position-independent detection within the light array, adjustable via IO-Link incl. adjustable conveyor belt suppression |
| Detection height | 55 mm |
| Sensing range max. | 0 m ... 2 m, 0 m ... 3 m, 0 m ... 4.5 m |
| Distance of the sensor to reflector | ≥ 0 m |
| Conveyor belt suppression | Manual, via IO-Link |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | 55 mm x 9 mm (1 m) |
| Wave length | 635 nm |
| Adjustment | BluePilot: Teach-in, IO-Link |
| Pin 2 configuration | External Input (test), Teach-in, switching signal |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 25 mA, 40 mA 2) |
| Switching Output | Push-pull: PNP/NPN |
| Output: QL1 / C | Switching output or IO-Link mode |
| Output function | Factory setting: Pin 2 / white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally closed (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Switching mode selector | Via IO-Link |
| Signal voltage PNP HIGH/LOW | Approx. VS – 2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 3 ms |
| Switching frequency | 170 Hz |
| Connection type | Cable, 4-wire, 2 m |
| Cable material | PVC |
| Protection class | III |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | –40 °C ... +60 °C 12) 1 |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Weight | 130 g |
The RAY26P-1H162330A00 Sick Reflex Array Photoelectric Sensor is a SICK retro-reflective sensor designed for position-independent object detection in industrial automation. It provides a 0 m to 4.5 m sensing range, uses a 55 mm detection height, supports 3 mm, 5 mm, or 10 mm minimum object sizes, and provides a push-pull PNP/NPN output. The model belongs to the SICK photoelectric sensor range and uses autocollimation, coaxial optics, visible 635 nm red light, IO-Link, and BluePilot teach-in functionality.
The RAY26P-1H162330A00 Sick Reflex Array Photoelectric Sensor can be used on conveyors, packaging machines, automated production lines, and assembly systems. Its 55 mm light array supports detection of small, flat, transparent, uneven, and perforated objects at different positions within the detection zone. The push-pull output supports PNP or NPN operation, while IO-Link enables configuration and diagnostics. BluePilot provides teach-in functionality for setting up the sensor in industrial automation applications.
SICK RAY26P-1H162330A00, Part No. 1221945, combines Reflex Array sensing, autocollimation optics, visible red illumination, push-pull switching, and an M12 4-pin connection. Its VISTAL plastic housing carries IP66 and IP67 enclosure ratings for resistance to dust and water ingress. As part of the SICK photoelectric sensor range, this model is suitable for conveyor, packaging, assembly, and automation applications that require detection of small or irregular objects across a defined light array.
