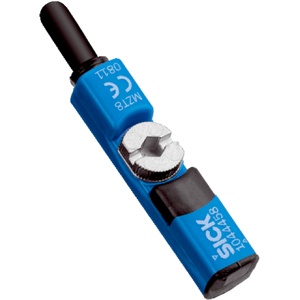

MZT8-03VPS-KQ0: Sick T-Slot Cylinder Sensors For Automation
Technical Specifications of Sick T-Slot Cylinder Sensors For Automation MZT8-03VPS-KQ0:
| Housing Length | 24 mm |
| Switching Output | PNP |
| Output Function | NO |
| Connection Type | Cable with connector M12, 4-pin, with knurled nuts, drag chain use, 0.3 m |
Sick T-Slot Cylinder Sensors For Automation MZT8-03VPS-KQ0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 24 mm |
| Switching output | PNP |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 |
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 10 mA, without load |
| Voltage drop | ≤ 2.2 V |
| Continuous current Ia | ≤ 200 mA |
| Protection class | III |
| Time delay before availability | 25 ms |
| Response sensitivity, typ. | 2.6 mT |
| Overrun distance, typ. | 3 mm |
| Hysteresis, typ. | 0.7 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Power-up pulse protection | Yes |
| Ambient operating temperature | –30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable with connector M12, 4-pin, with knurled nuts, drag chain use, 0.3 m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 2.9 mm |
| Bending radius | - |
| Torsion force | - |
| Drag chain parameters | - |
| Cable outlet | Axial |
| Housing | Plastic, PA12 |
| Cable | PUR |
IndMALL Automation Dealing offers Sick T-Slot Cylinder Sensors For Automation MZT8-03VPS-KQ0 at unbeatable prices. The Main Technical Parameters of MZT8-03VPS-KQ0 are housing length of 24 mm, featuring PNP switching output and a high switching frequency of 1,000 Hz. Designed with a NO output function, it operates on a DC 3-wire electrical wiring system. The sensor is rated IP68 , ensuring durability and protection in demanding industrial environments. It supports a supply voltage range of 10 V DC ... 30 V DC, with low power consumption of 10 mA, without load. The voltage drop is ≤ 2.2 V, and the continuous current (Ia) is ≤ 200 mA, making it energy-efficient. The connection type is a Cable with connector M12, 4-pin, with knurled nuts, drag chain use, 0.3 m application. The cable has a diameter of Ø 2.9 mm, and the housing is made from robust Plastic, PA12, ensuring longevity. The cable is PUR, providing flexibility and durability. Take the First Step with a Quote for your requirement of Sick T-Slot Cylinder Sensors For Automation. Choose us for unparalleled pricing and support over other Dealers & Distributors.
