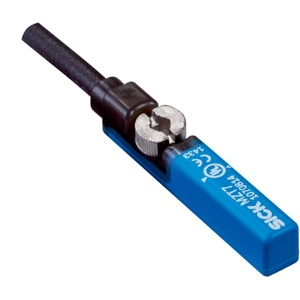

MZT7-2V2PS-KU0: T-Slot Sick MZT7 With PNP Switching Output
Technical Specifications of T-Slot Sick MZT7 With PNP Switching Output MZT7-2V2PS-KU0:
T-Slot Sick MZT7 With PNP Switching Output MZT7-2V2PS-KU0 Technical Specifications:
| Specification | Value |
|---|---|
| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 29.5 mm |
| Switching output | PNP |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP65 IP67 |
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 8 mA, without load |
| Voltage drop | ≤ 2 V |
| Continuous current Ia | ≤ 100 mA |
| Protection class | III |
| Response sensitivity, typ. | 2.2 mT |
| Overrun distance, typ. | 3 mm |
| Hysteresis, typ. | < 0.8 mT |
| Reproducibility | ≤ 0.1 mT |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Ambient operating temperature | –30 °C ... +70 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |
| Connection type | Cable, 3-wire, 2 m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | Ø 2.9 mm |
| Bending radius | With fixed installation > 3 x cable diameter |
| Torsion force | ± 270° / 10 cm |
| Cable outlet | Axial |
| MaterialHousingPlasticCablePUR | Material |
| Housing | Plastic |
| Cable | PUR |
Ask for the Pricing of T-Slot Sick MZT7 With PNP Switching Output MZT7-2V2PS-KU0 at unbeatable prices. Detailed Specifications of MZT7-2V2PS-KU0 features housing length of 29.5 mm, featuring PNP switching output and a fast switching frequency of 1,000 Hz. Designed with a NO output function, it operates using a DC 3-wire electrical system. The sensor is rated IP65 IP67, providing excellent protection in various industrial environments. It supports a supply voltage range of 10 V DC ... 30 V DC and consumes only 8 mA, without load. The voltage drop is ≤ 2 V, and the continuous current (Ia) is ≤ 100 mA, ensuring efficient performance. The connection type is Cable, 3-wire, 2 m, suitable for drag chain use, and the cable diameter is Ø 2.9 mm. The housing is made from durable Plastic, and the cable is PUR, ensuring long-lasting operation. Now's the Time to Secure a Quote for your requirement of T-Slot Sick MZT7 With PNP Switching Output. We're committed to offering more favorable pricing and more responsive support than other Traders.
